Strength: According to customer demand, maximum 7500N/mm
Width (mm): 800mm-2400mm, such as 800mm, 900mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm,2000mm, 2200mm, 2400mm
Thickness: such as 3+1.5mm, 3+2mm, 4+2mm, 5+3mm, 6+2mm, 8+2mm etc.
Suitable for conveying various lumps, granular or powders such as coal, coke, sand, salt, iron ore, and cement in bulk or packaged.

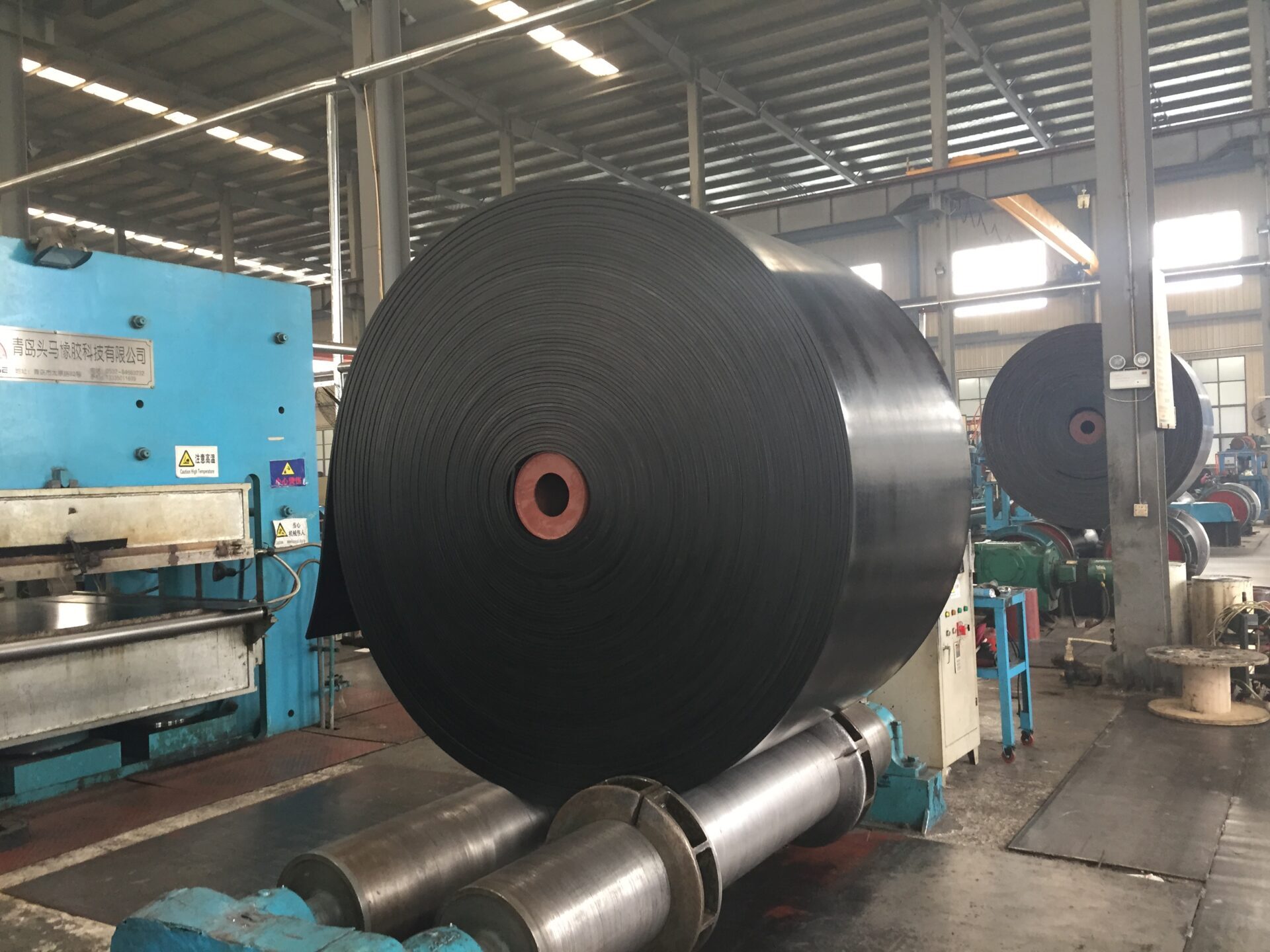

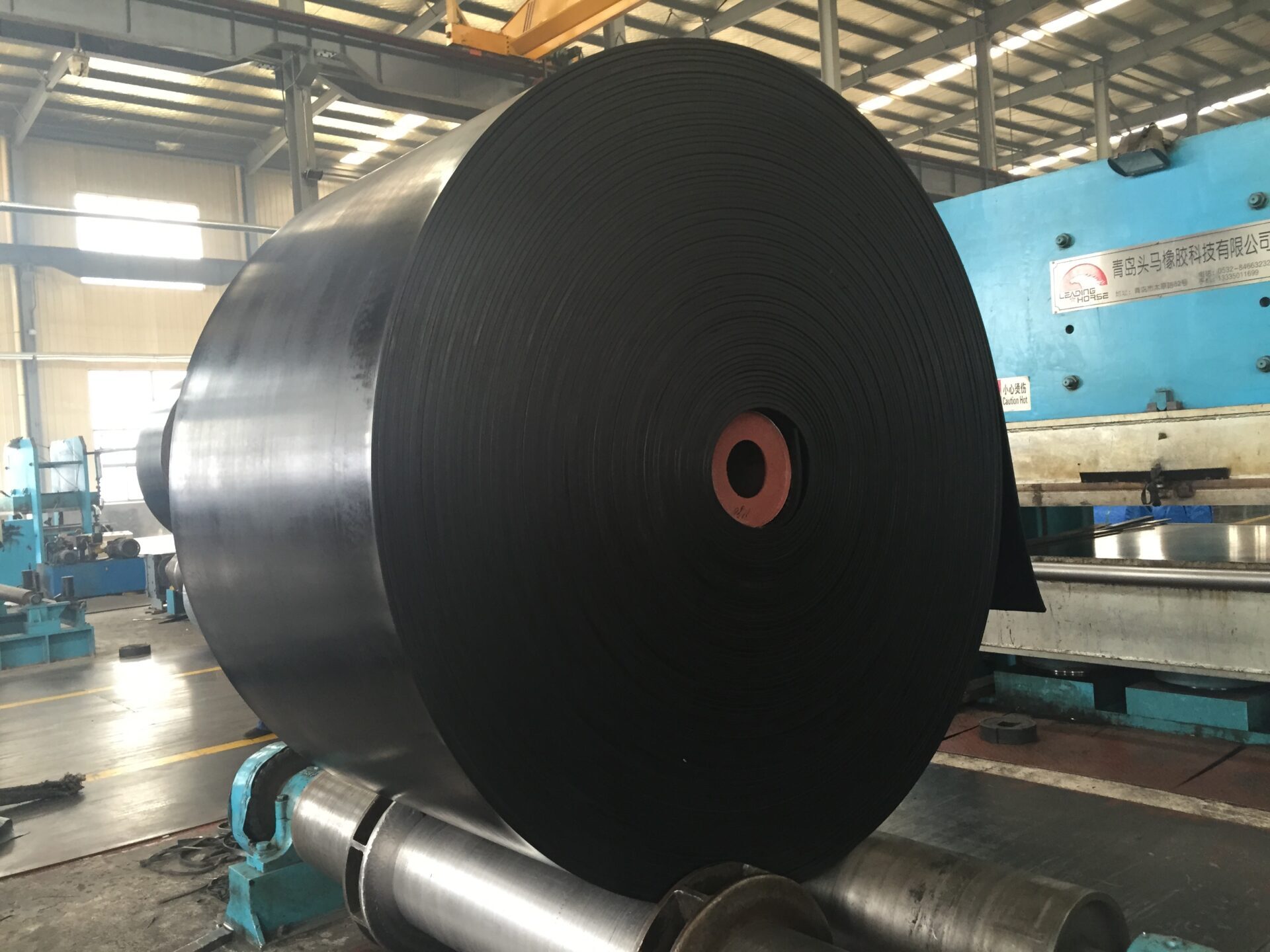

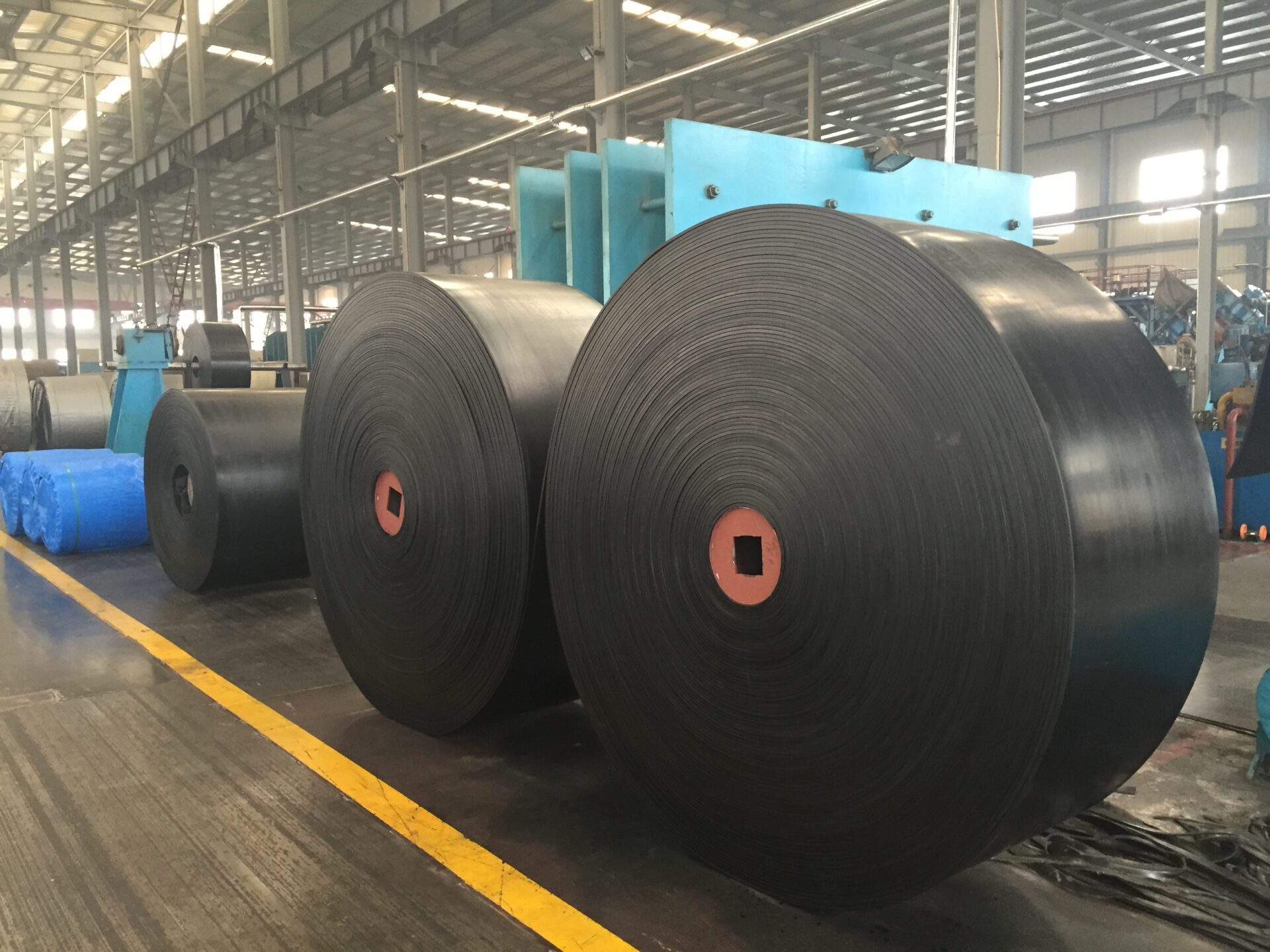

Underground mining conveyor belt is composed of upper covering layer, lower covering layer, steel wire rope, adhesive layer and side glue.
High strength
Low elongation
Filled with ST or fiber, the rip resistance improved
High resistance to abrasion
Good performance, long service life
Resistant to impact
US RMA Standard
Germany DIN22131 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
UK EN ISO15236 Standard
China GB/T7984 Standard
| Specification | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
| Tensile Strength(N/mm) | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max Diameter of Cord(mm) | 4 | 4.5 | 5 | 6 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.8 | 13.5 | 15.0 |
| Pitch of Cord(mm) | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 18 | 19 | 21 |
| Top Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Bottom Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Weight(kg/m²) | 22.5 | 24 | 25.9 | 31.8 | 36.1 | 40.4 | 43.8 | 45 | 45.1 | 50.7 | 53.4 |
