Steel Cord Conveyor Belt

Product Classification

Require Now

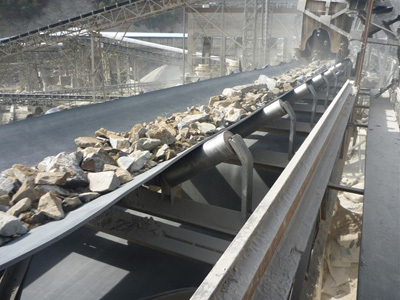

Product Use

General purpose steel cord conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry and other fields. It is suitable for conveying massive, granular and powder materials in high-strength, long-distance and large volume situations.

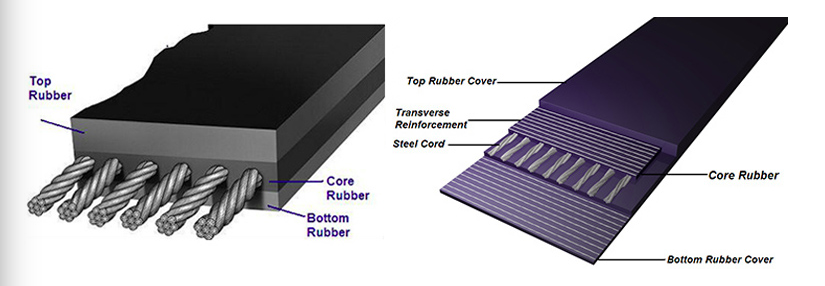

Product Structure

General purpose steel cord conveyor belt is composed of top coating layer, bottom coating layer, steel wire rope, adhesive layer and edge rubber.

Product Features

Our product has the characteristics of high tensile strength, impact resistance, good elasticity, high wear resistance, small elongation, high adhesion between rubber and steel cord, even tension of steel cord rope, good troughability, etc. It is suitable for conveying massive, granular and powdery materials in high-strength, long-distance and large traffic situations.

Executive Standard

China GB/T9770 Standard

Germany DIN22131 Standard

UK EN ISO15236 Standard

Japan JISK6369 Standard

Australia AS1333 Standard

Main Technical Parameters





Technical Data

Specification



ST630



ST800



ST1000



ST1250



ST1600



ST2000



ST2500



ST3150



ST3500



ST4000



ST4500



ST5000



ST5400



ST6300
Tensile Strength(N/mm) 630 800 1000 1250 1600 2000 2500 3150 3500 4000 4500 5000 5400 6300
Max Diameter of Cord(mm) 3.0 3.5 4.0 4.5 5.0 6.0 7.5 8.1 8.6 8.9 9.7 10.9 11.3 12.3
Pitch of Cord(mm) 10 10 12 12 12 12 15 15 15 15 16 17 17 18
Top Rubber Cover Thickness(mm) 5 5 6 6 6 8 8 8 8 8 8 8.5 9 10
Bottom Rubber Cover Thickness(mm) 5 5 6 6 6 6 6 8 8 8 8 8.5 9 10
Weight(kg/m2) 18 19.5 22.5 24 25.9 31.8 36.1 40.4 43.8 45 45.1 50.7 53.4 59.6
Width(mm) Cord Number
800 75 75 63 63 63 63 50 50 50
1000 95 95 79 79 79 79 64 64 64 64 59 55 55 54
1200 113 113 94 94 94 94 76 76 77 77 71 66 66 63
1400 133 133 111 111 111 111 89 89 90 90 84 78 78 74
1600 151 151 126 126 126 126 101 101 104 104 96 90 90 85
1800   171 143 143 143 143 114 114 117 117 109 102 102 96
2000     159 159 159 159 128 128 130 130 121 113 113 107
2200           176 141 141 144 144 134 125 125 118



Cover rubber property and grades



Test Item

 Property indexes
GB9770-2001 DIN22131
D H L P W X Y
 Tensile strength Mpa≥ 18 25 20 14 18 25 20
Elongation %≥ 400 450 400 350 400 450 400
Abrasion ≤ 90mm3 120mm3 150mm3 200mm3 90mm3 120mm3 150mm3
Aging test  (70℃×168h)
Median value of tensile strength and elongation at break

%



It shall not be less than 75% of the corresponding value before aging.





Recommended Min.Pulley Diameter

Type ST630 ST800 ST1000 ST1250 ST1600 ST2000 ST2500 ST3150 ST3500 ST4000 ST4500 ST5000 ST5400 ST6300
Min.Diameter of Pulley

（mm）

 500 630 800 1000 1250 1400 1500 1600 1800



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
