According to the performance of the covering rubber, it can be divided into ordinary type, flame-retardant type, wear-resistant type, cold-resistant type, heat-resistant type, and other varieties.
According to the internal structure, it can be divided into ordinary structure type, transverse reinforcement type, and embedded coil tear-proof type.

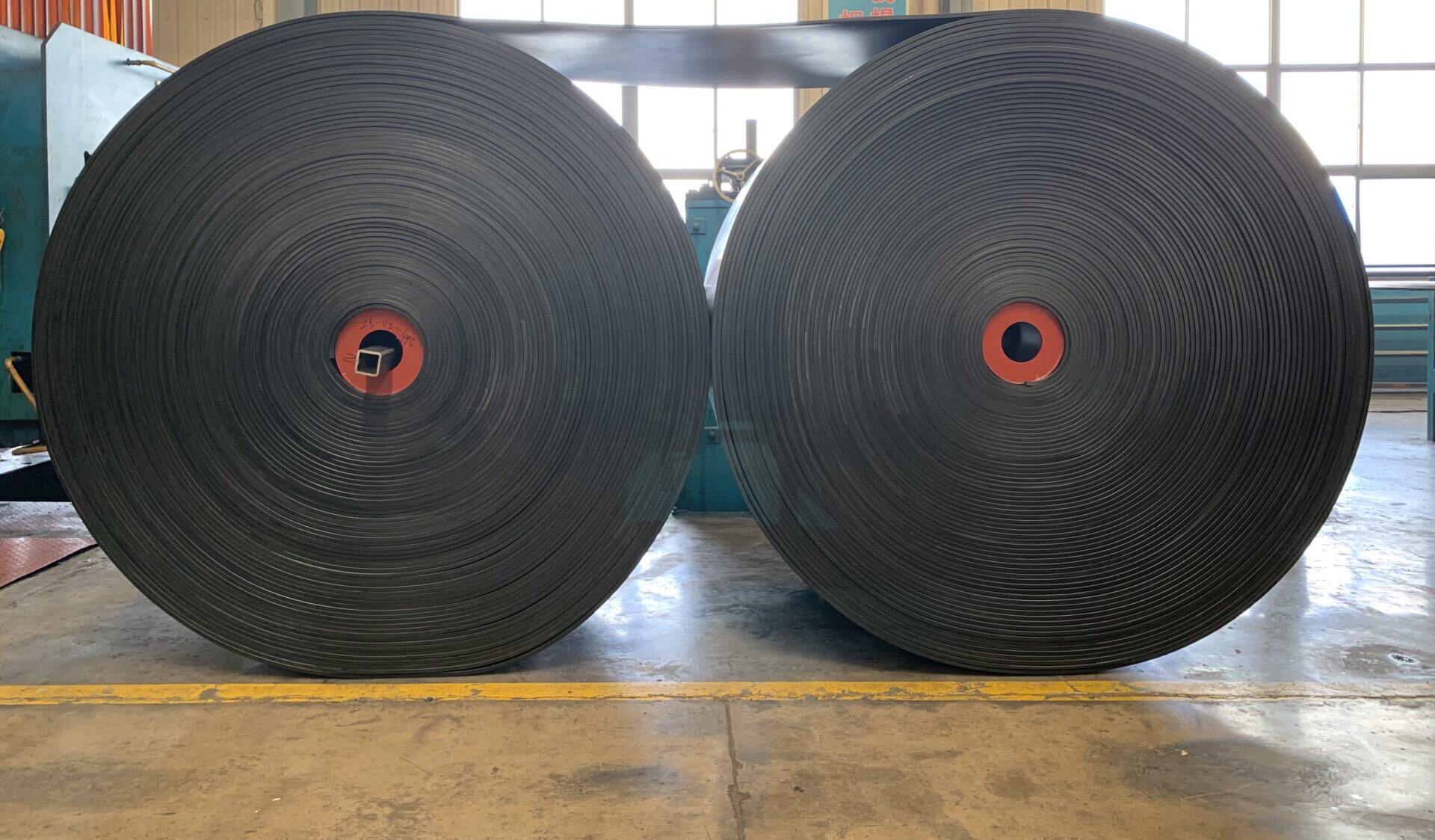

The steel cord bucket elevator conveyor belt is used in a variety of industries, including mining, cement production, and agriculture. It is particularly suitable for conveying large quantities of heavy materials such as ores, coal, or cement vertically over long distances.
The steel cord bucket elevator conveyor belt consists of a multi-layered rubber cover, steel cords, and a fabric layer. The rubber cover protects the steel cords from external factors such as substances, heat, or moisture. The steel cords provide strength and support for the conveyor belt and ensure it can withstand heavy loads during operation. The fabric layer adds flexibility and helps absorb shock and impact, ensuring smooth and stable transport of materials.
The steel cord bucket elevator conveyor belt is known for its high tensile strength, excellent resistance to abrasion and impact, and exceptional durability. It can handle heavy loads and provide smooth, reliable transportation of materials over long distances. Additionally, this type of conveyor belt has a low elongation rate, allowing it to maintain its shape and reduce the risk of slipping or jamming.
US RMA Standard
Germany DIN22131 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
UK EN ISO15236 Standard
China GB/T7984 Standard
| Specification | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
| Tensile Strength(N/mm) | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max Diameter of Cord(mm) | 4 | 4.5 | 5 | 6 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.8 | 13.5 | 15.0 |
| Pitch of Cord(mm) | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 18 | 19 | 21 |
| Top Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Bottom Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Weight(kg/m²) | 22.5 | 24 | 25.9 | 31.8 | 36.1 | 40.4 | 43.8 | 45 | 45.1 | 50.7 | 53.4 |
