Special Purpose Conveyor Belt

Product Classification

Special purpose conveyor belts can be classified into different categories based on the specific applications, such as oil-resistant conveyor belts, heat-resistant conveyor belts, fire-retardant belts, chemical-resistant conveyor belts and etc.

Require Now

Product Use

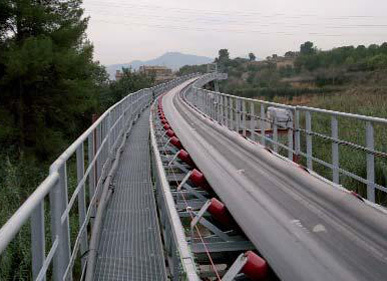

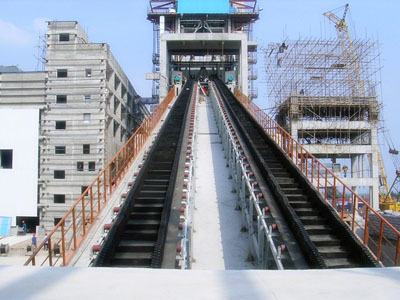

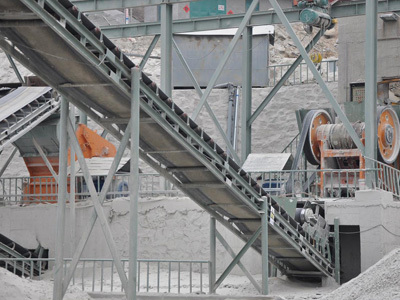

The belts are designed for specific applications in industries such as mines, metallurgy, architecture, ports, electricity, chemical industries, etc. They are used to transport various materials such as ores, coal, grains, cement, and more.

Product Structure

Multiply EP/NN/CC carcass

High performance cover rubber with good fabric adhesion properties

Product Features

Long service life

High strength

Impact resistance

Good performance

Excellent flexure

Executive Standard

DIN 22102 (German), AS 1333 (Australian), SANS 1173 (South African), RMA (US, South America), BS 490 (British), JS (Japanese).

Main Technical Parameters

Fabric Canvas Fabric Structure Fabric Code Fabric layer Numbers Width (mm) Cover Thickness (mm)
  Warp Weft       Top Bottom
EP/NN EP/NN EP/NN 100 2-10 350-2200 2-12 1-5
      150 2-10 350-2200 2-12 1-5
      200 2-10 350-2200 2-12 1-5
      250 2-10 350-2200 2-12 1-5
      300 2-6 350-2200 2-12 1-5
      400 2-6 350-2200 2-12 1-5
      500 2-6 350-2200 2-12 1-5
      600 2-4 350-2200 2-12
Index Description Strength between Layers Cover Layer and Fabric Layer
    Cover Thickness ≤1.5mm Cover Thickness >1.5mm
Sample Average Value ≥4.5N/mm 3.2N/mm 3.5N/mm

Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
