The belt is much suitable to service in the conditions needing flame resistant and anti-static request as coal mines, power stations, chemical and metallurgy industries.
Belt strength: 680S-2500S
Belt width: 500mm-1600mm

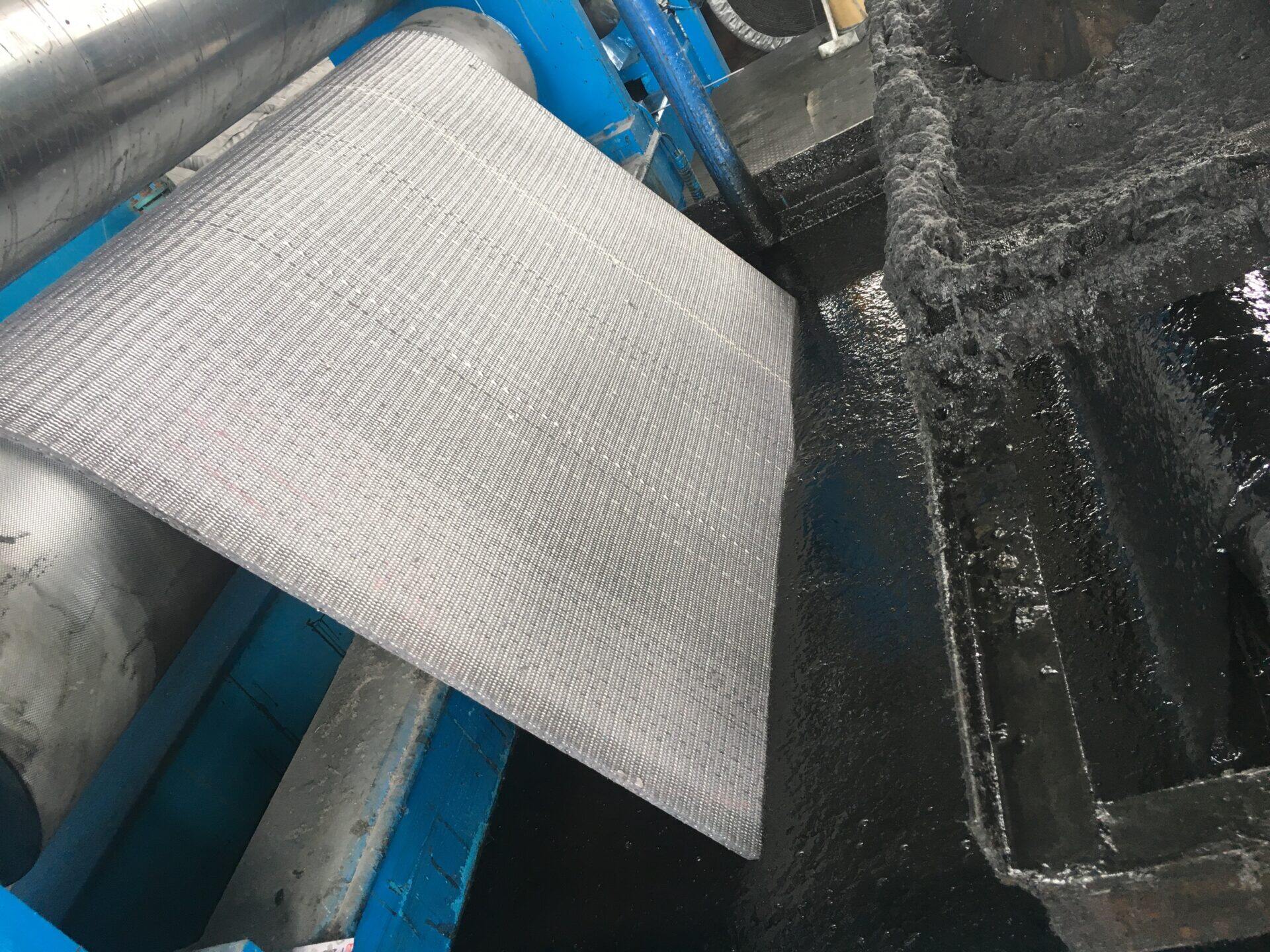

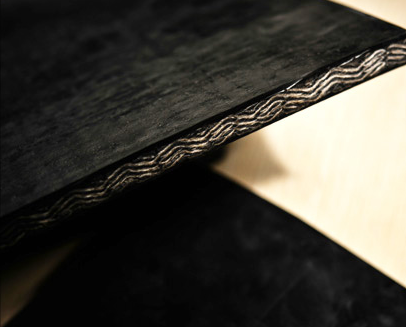

The main feature of this product is the total impregnation of the solid woven fabric carcass with the PVC material. It has high values in terms of fire resistance as well as being anti-static and resistant to impact and abrasion.
| Grade of strength |
Tensile strength（Min.） |
Carcass thickness (mm) |
Carcass weight (Kg/m2) |
Cover grade and thickness(mm) | Belt width
(mm) |
||
| (N/mm)
Warp |
(N/mm)
Weft |
PVC | PVG | ||||
| 680s | 680 | 265 | 6.5 | 8.5 | 1.5+1.5 | 1.5+1.5 |
500-1600 |
| 800s | 800 | 320 | 6.9 | 9.0 | 1.5+1.5 | 1.5+1.5 | |
| 1000s | 1000 | 350 | 7.5 | 9.7 | 2+1.5 | 2+1.5 | |
| 1250s | 1250 | 350 | 8.5 | 11.0 | 2+2 | 2+1.5 | |
| 1400s | 1400 | 350 | 9.0 | 11.5 | 3+2 | 2.5+1.5 | |
| 1600s | 1600 | 450 | 9.5 | 12.3 | 3+2 | 2.5+1.5 | |
| 1800s | 1800 | 450 | 10.0 | 13.0 | 3+2 | 3+2 | |
| 2000s | 2000 | 450 | 10.5 | 13.6 | 3+2 | 4+2 | |
| 2500s | 2500 | 450 | 12.5 | 14.5 | 3+2 | 5+3 | |
Recommended minimum diameter of drum
| Grade of strength | 680/1 | 800/1 | 1000/1 | 1250/1 | 1400/1 | 1600/1 | 1800/1 | 2000/1 | 2500/1 | 3100/1 |
| T4 | T5 | T6 | T7 | T8 | T9 | T10 | T11 | T13 | T15 | |
| Diameter of drum | 400 | 500 | 630 | 750 | 750 | 800 | 800 | 1000 | 1200 | 1500 |
