According to different application of rubber belt, we can offer:
Heat-resistant belt, cold-resistant belt, acid and alkali resistant conveyor belt, flame resistant belt, oil-resistant belt, wear-resistant belt, etc.
Rubber belts are commonly used in a wide range of industries, including agriculture, automotive, construction, and manufacturing. They are designed to transport a variety of materials, including all kinds of bulk materials for short and medium-distance materials transportation for transporting.

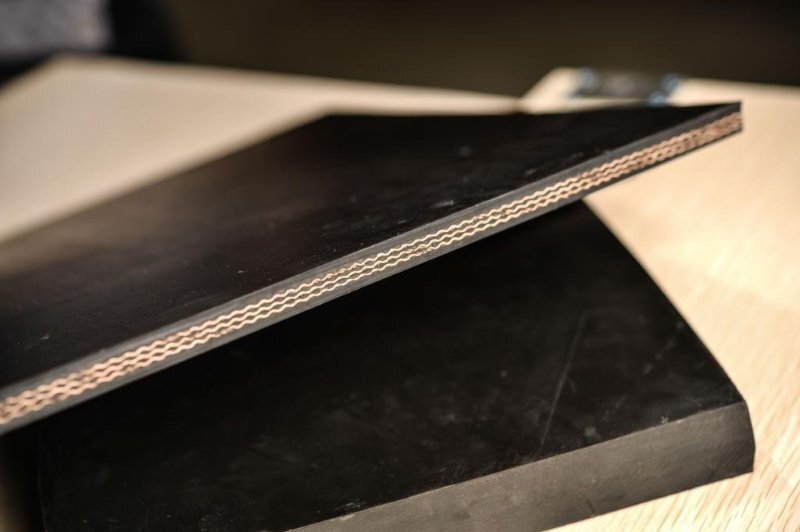

Rubber belt is a type of conveyor belt made from synthetic rubber materials with fabric, steel, or other materials. Rubber belts are made by bonding together layers of rubber material with fabric reinforcements. The layers are usually coated with different materials to provide increased strength, durability, and resistance to wear, abrasion, and chemicals.
Heat resistant conveyor belt has the advantages of high temperature resistance, heat aging resistance, excellent ozone aging resistance, good weather resistance, good chemical resistance, high inter layer adhesion strength, long service life, etc.
Oil resistant belt has the characteristics of high strength, small elongation, wear resistance, oil resistance, aging resistance, long service life, etc
Acid and alkali resistant conveyor belt has good chemical corrosion resistance, good physical properties, acid and alkali resistance, wear resistance and other characteristics.
Flame resistant conveyor belt has high initial modulus, good thermal stability of belt body size, high strength, small elongation and impact resistance, which is suitable for conveying materials in medium and long distance, large volume and high speed.
Cold resistant conveyor belt has the characteristics of cold resistance, high elasticity, impact resistance, wear resistance, etc. it can be used normally under – 60 ℃.
DIN22102, RMA, AS1332, SABS 1173/2000, IS 1891, BS490, JIS K 6322, etc.
| Type | Textile type | Strength per ply Min.(N/mm) |
Plies of fabric | Cover thickness(mm) | Belt width (mm) |
Cover grade | |
| Top cover | Bottom cover | ||||||
|
EP belt |
EP-100 | 100 |
2-8 |
2-16 |
0-10 |
300-3400 |
Abrasion resistant |
| EP-125 | 125 | ||||||
| EP-150 | 150 | ||||||
| EP-200 | 200 | ||||||
| EP-250 | 250 | ||||||
| EP-300 | 300 | ||||||
| EP-350 | 350 | ||||||
| EP-400 | 400 | ||||||
| EP-500 | 500 | ||||||
|
NN belt |
NN-100 | 100 |
2-10 |
||||
| NN-125 | 125 | ||||||
| NN-150 | 150 | ||||||
| NN-200 | 200 | ||||||
| NN-250 | 250 | ||||||
| NN-300 | 300 | ||||||
| NN-400 | 400 | ||||||
| NN-500 | 500 | ||||||
| CC belt | CC56 | 56 | 3-12 | ||||
