Rip Stop Conveyor Belt

Product Classification

Conventional, abrasion resistant, fire resistant, heat resistant, oil resistant and etc.

Require Now

Product Use

Rip stop conveyor belt is suitable for metallurgy, coal, mines, building materials, and other places where with large transportation volumes. Suitable for medium to long distance.

Product Structure

High-elastic steel wire ropes or high-elastic chemical fiber cords arranged horizontally and uniformly above or below the conveyor belt core are used as a tear-resistant layer, and the tear-resistant layer is perpendicular to the running direction of the conveyor belt.

Product Features

Anti-tear and rip resistance

Available in 3,4 or 5 ply in various strengths

Impact resistance

Long service life

High elongation weft steel cord gives good trough ability

Executive Standard

DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.

Main Technical Parameters

Type Material Width (mm） Total Thickness（mm） Suitable Scope
Nylon Fabric Conveyor Belt NN100
NN150
NN200
NN250
NN300		 300-1600
12″-63″		 7-8 Suitable for middle-long distance conveyance under the rather high abrasion
Ep Conveyor Belt EP100
EP1500
EP200
EP250		 300-1600
12″-63″		 7-8 Suitable for middle-long distance conveyance under the high abrasion and ratter high temperature as well.



Rip Stop Material Thickness
(mm)		 Width

(mm)

 Fabric Strength

KGF/CM
N/MM

 Cover Rubber Grade
Code Material Structure
NS Steel Cord Diameter: 1.5mm
Pitch: 2 ~ 10mm
(Can design according to customer’s demand)		 Top Cover: ≧ 6.0mm
Bottom Cover: ≧ 2mm		 800 ~ 2200 300 ~ 2200 Abrasion Resistant

Impact resistant

General oil resistant

Fire resistant

Cold resistant
KA Kevlar Denier: 4500 ~ 18000
Density: (8 ~ 10) ± 1 end/cm		 Top Cover: ≧ 4.0mm
Bottom Cover: ≧ 1.5mm		 Abrasion Resistant

Impact Resistant

Oil Resistant

Heat Resistant

Fire Resistant

Cold Resistant



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

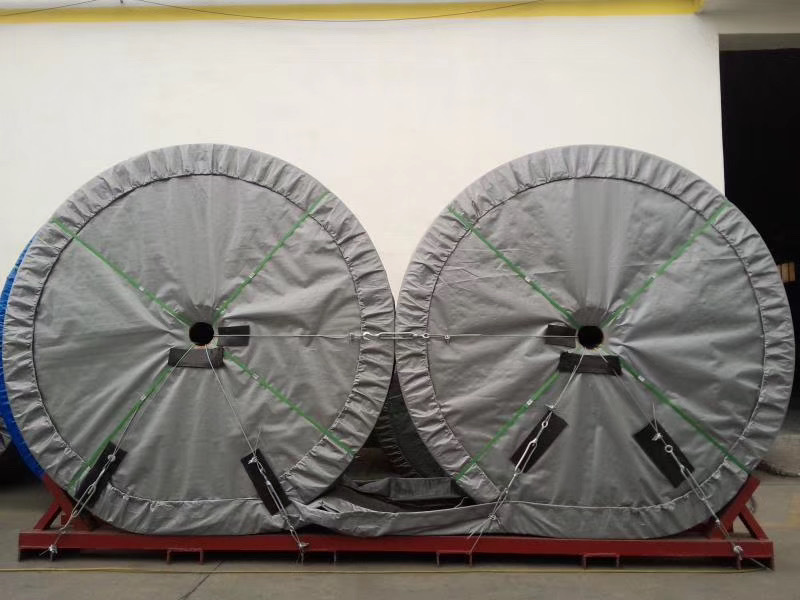

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
