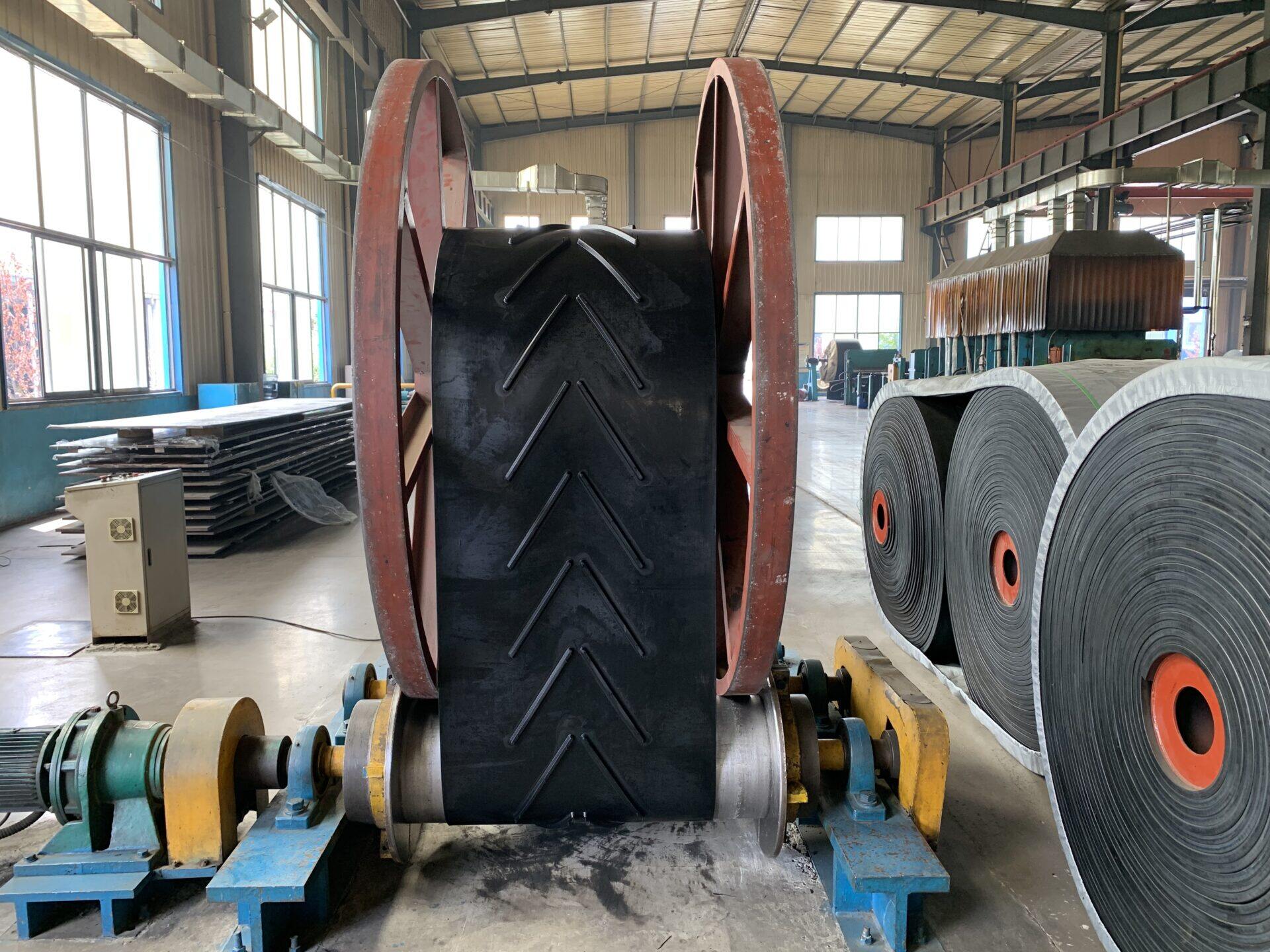

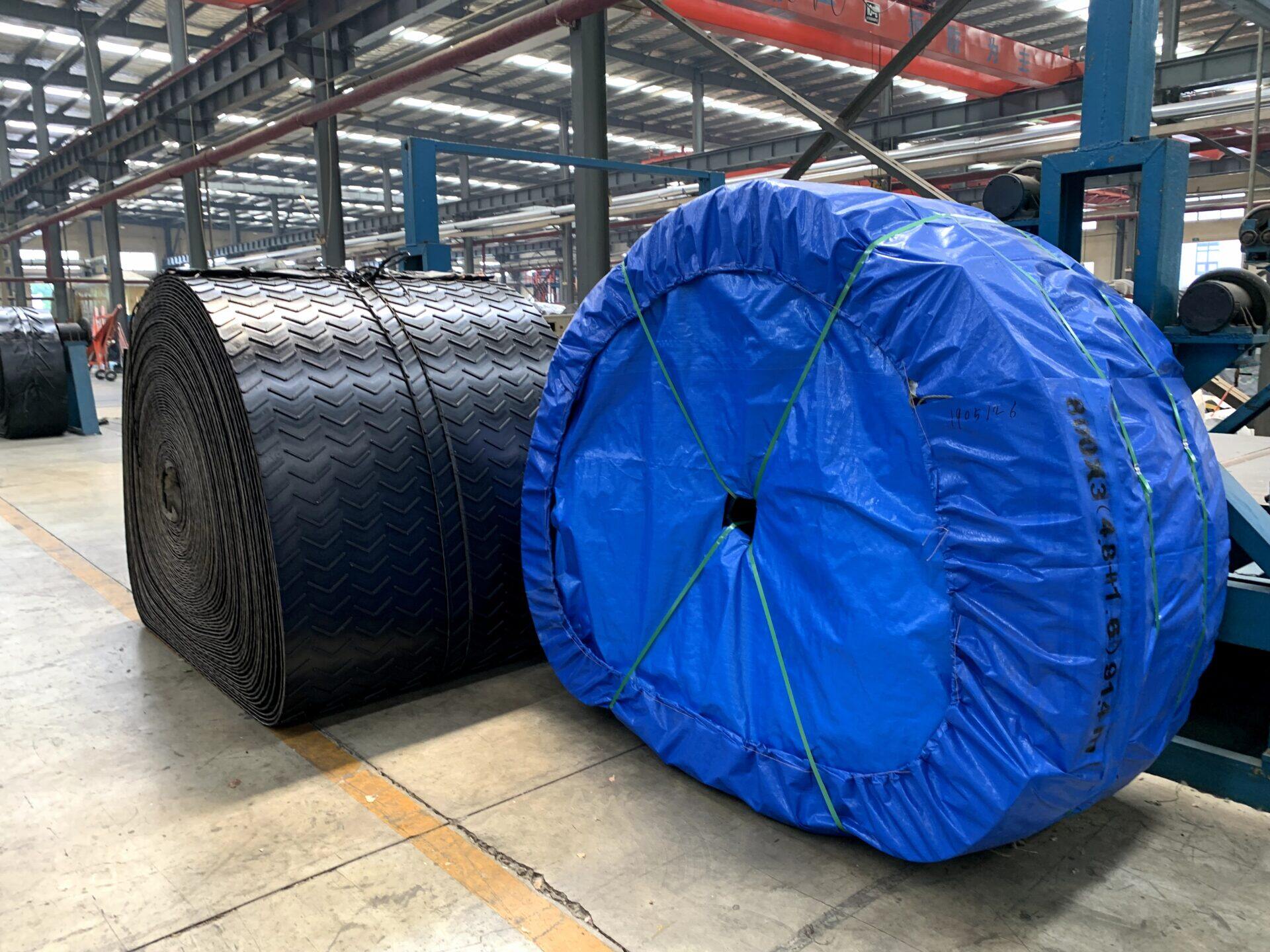

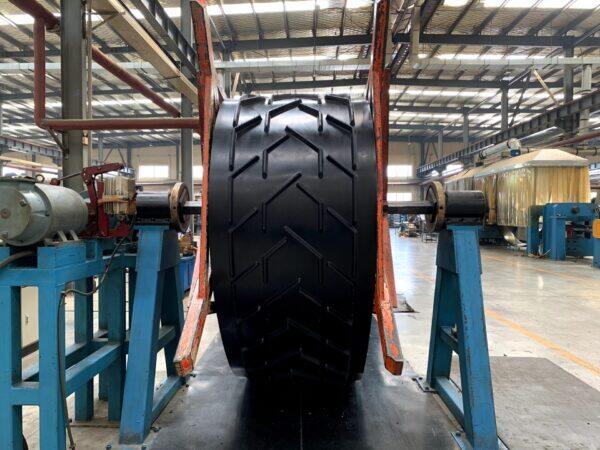

The classification of ribbed conveyor belts can be based on various factors such as the shape and size of the ribs, the material used in construction, and the intended application. Some common types of ribbed conveyor belts include: chevron ribbed conveyor belts, wide ribbed conveyor belts, steel cord ribbed conveyor belts, fabric ribbed conveyor belts, etc.
Ribbed conveyor belt is used in the following fields: quarries, cement plants, agriculture, mining, coal, coke, etc.
Ribs: These are the raised ridges or grooves that run along the surface of the belt, providing grip and preventing slippage.
Cover layer: This is the outermost layer of the belt that comes into contact with the transported material.
Carcass: This is the foundation of the belt and is made up of multiple layers of fabric or other materials that provide strength and stability.
The ribbed conveyor belt has the advantages of high strength, low elongation, abrasion resistance, small resistance, bond resistance, long useful life, etc.
RMA (RMAⅠ, RMAⅡ)
GB7984-87
AS1332 (M24, N17)
DIN22102 (DINW, DINX, DINY, DINZ, DINK)
SANS 1173 (A, C, M, N)
| Technical Parameter | Definition | Range/Value |
| Width | Distance across the belt from edge to edge | 100 mm – 2400 mm |
| Length | Total length of the belt | Customizable based on application requirements |
| Pitch | Distance between adjacent ribs on the belt | 3 mm – 50 mm |
| Rib Height | Height of the ribs above the base of the belt | 2 mm – 25 mm |
| Belt Thickness | Thickness of the belt material | 1 mm – 10 mm |
| Tensile Strength | Maximum force the belt can withstand without breaking | Depending on belt type |
| Operating Temperature Range | Minimum and maximum temperatures at which the belt can operate | -20°C to +120°C (standard), up to +200°C for high-temperature applications |
| Surface Material | Material used to cover the belt surface, affecting friction and wear resistance | According to customers’ requirements |
| Backing Material | Material used to reinforce and support the belt | Fabric, steel cord, etc. |
| Rib Shape | Shape of the ribs, which can vary depending on the specific application | V-shaped, U-shaped, square-shaped, etc. |
