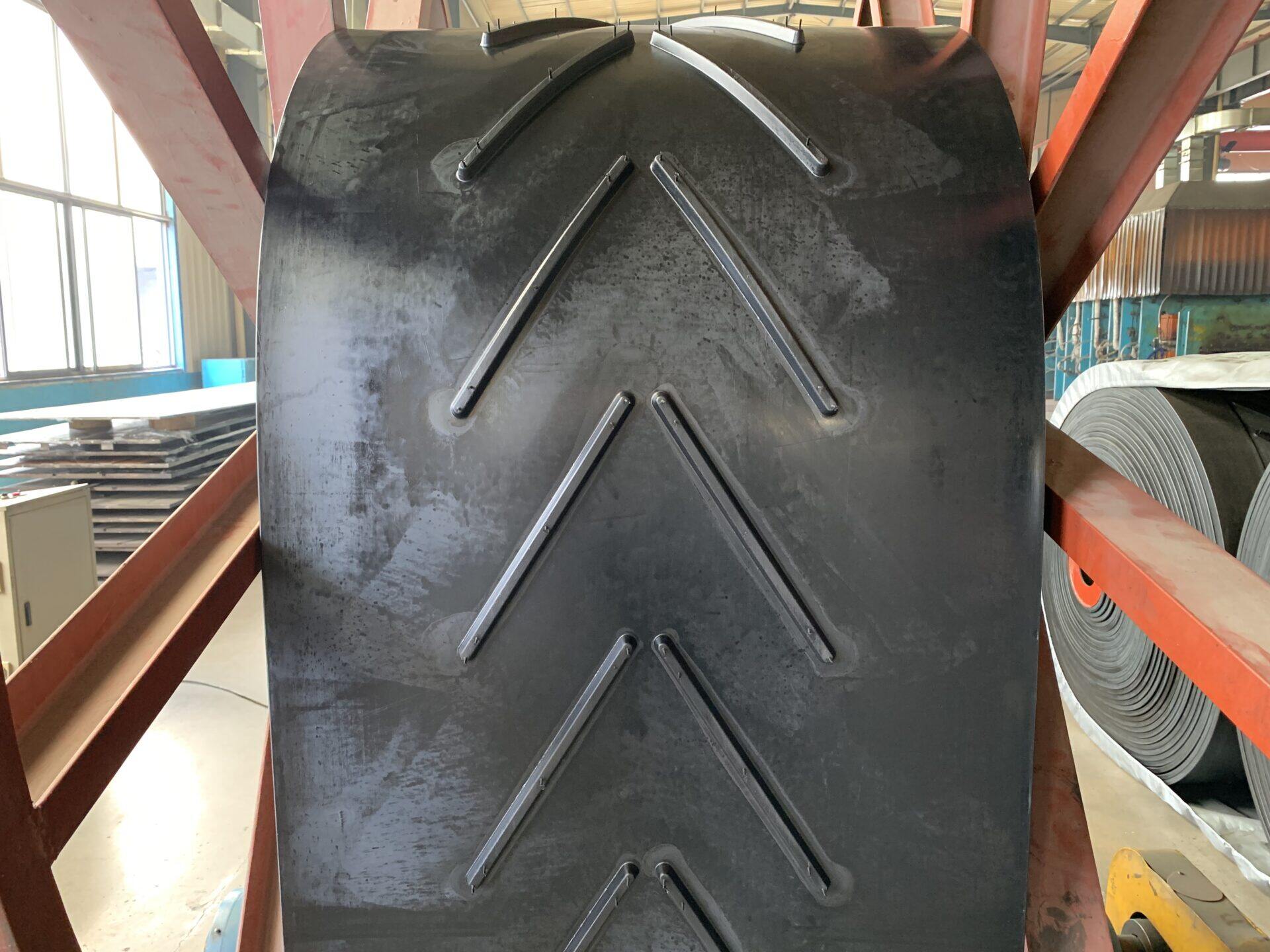

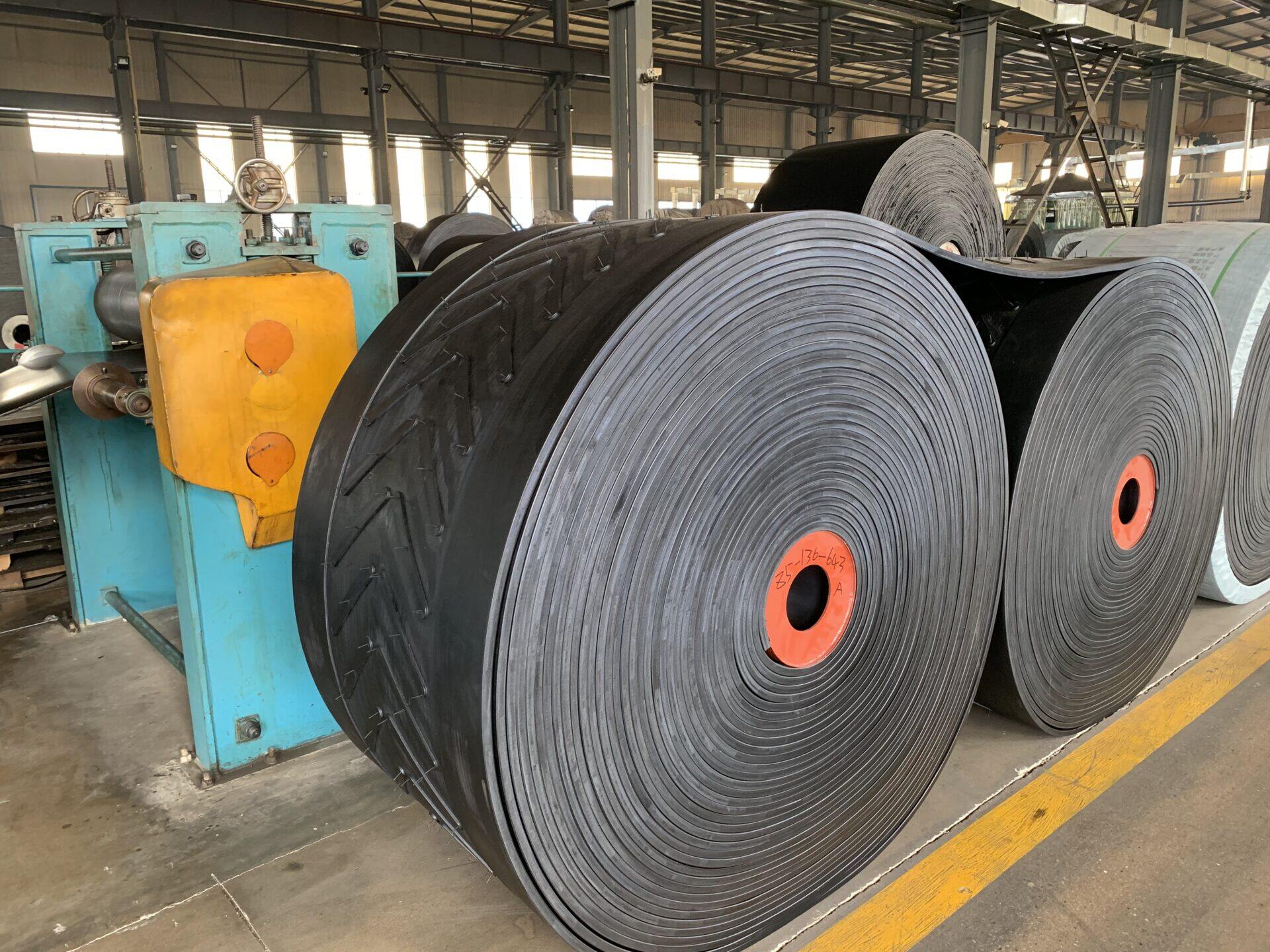

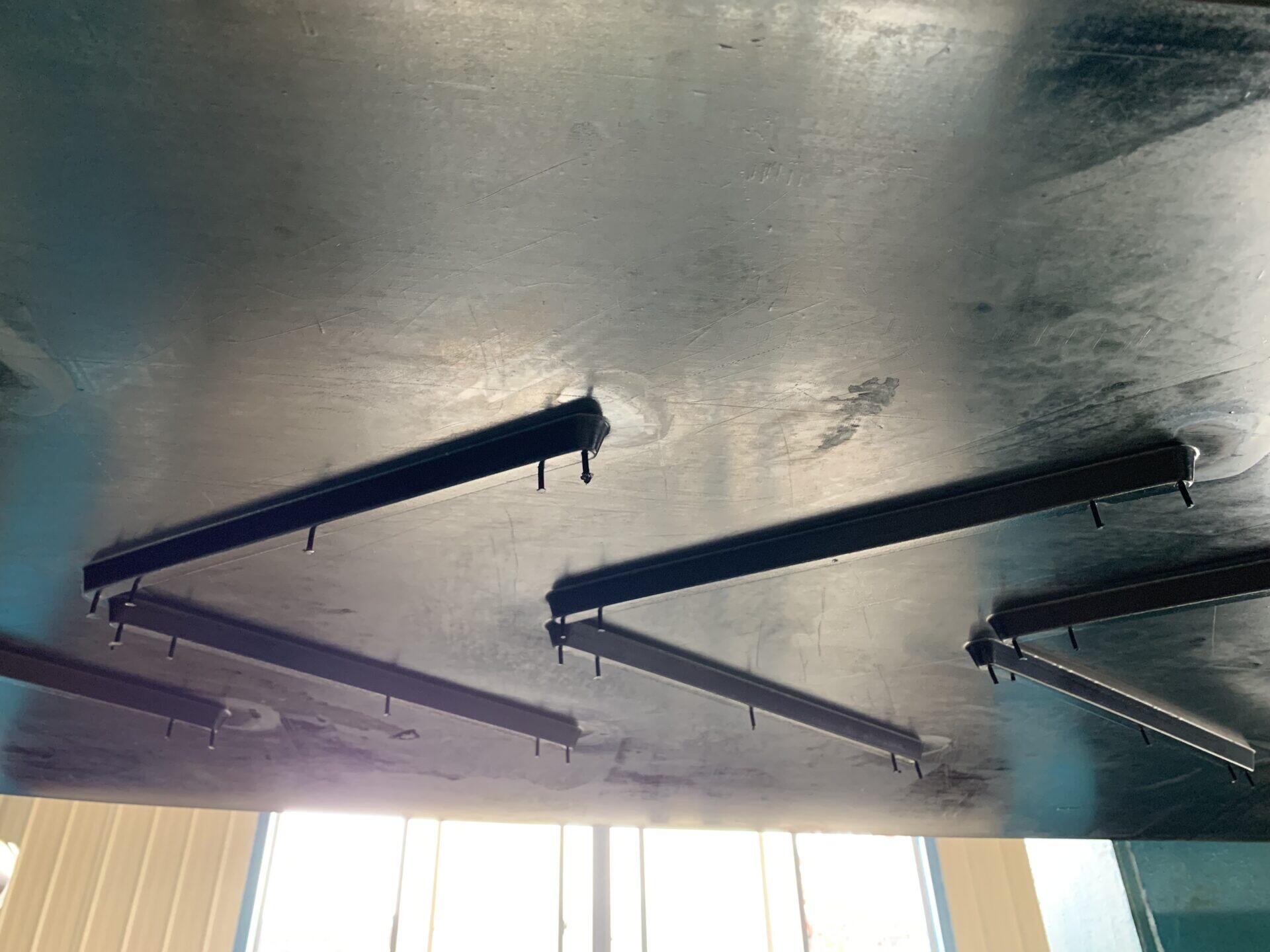

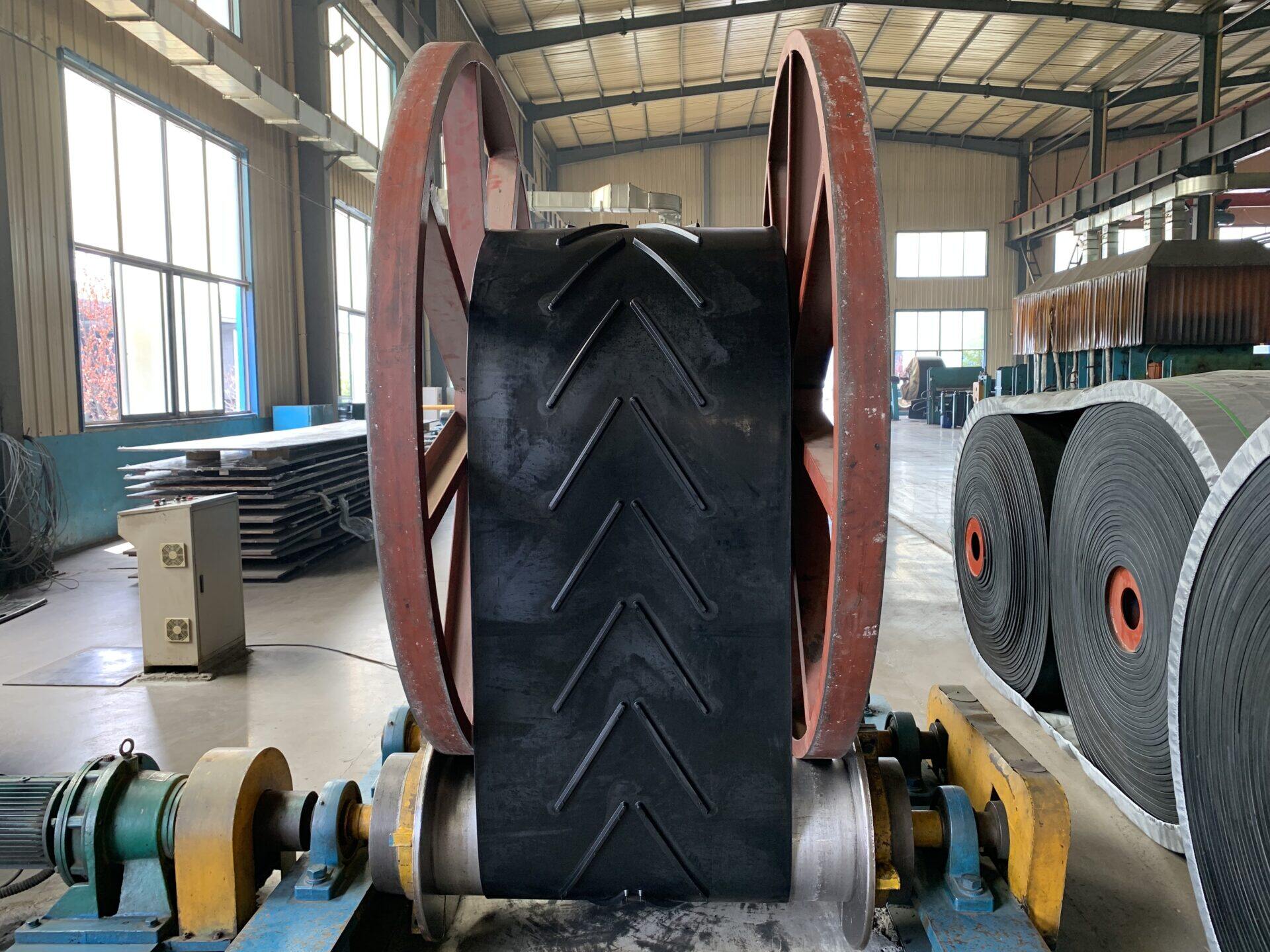

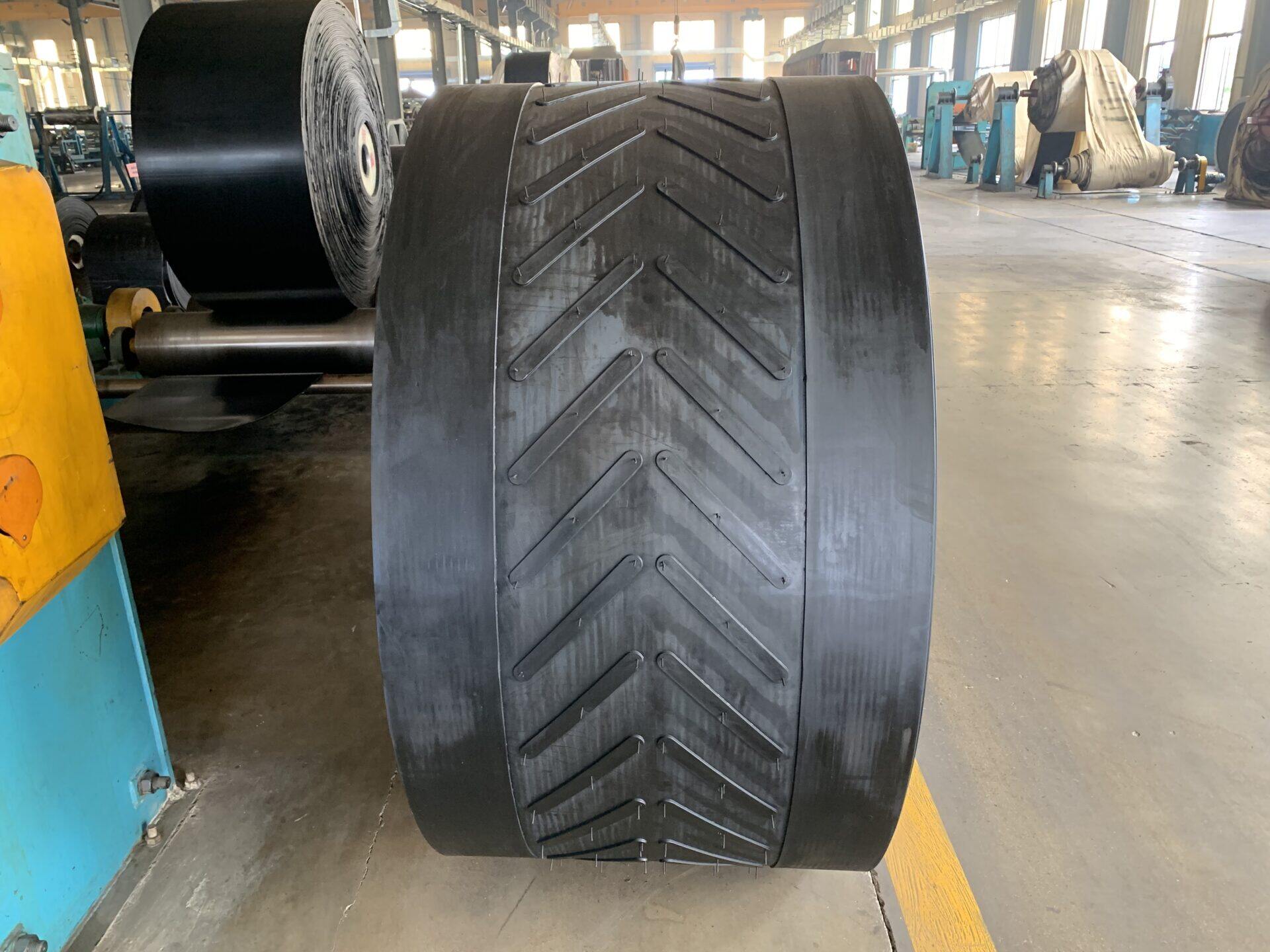

Patterned Conveyor Belt

Product Classification

The pattern conveyor belt is composed of the belt carcass and pattern, since the material to be conveyed and the angle of inclination of the conveyor is different, the shape and height (depth) of the pattern is different. The angle includes a 0~45° inclination angle. And the pattern type includes V type, Cylinder type, U type, etc.

Require Now

Product Use

Patterned Conveyor Belt can convey powdered, granulated, and small lump materials at a gradient of no more than 45 degrees. The belt can also convey packaged materials.

Product Structure

Patterned Conveyor Belt includes fabric carcass, patterned top cover rubber, and smooth bottom cover rubber.

Product Features

Good trough ability

High tensile strength

Small elongation in use

High abrasion resistance quality

Good tear resistance and flexibility

Greater material stability for inclined angles

Excellent weather resistance, not easy to crack and become deformed

Executive Standard

GB/T9770, DIN22131, EN ISO 15236, SANS1366, AS1333

Main Technical Parameters

Items Width Ply of carcass Inclination Angle
V shaped 300-2000 3-10 0-45ºC
U shaped 300-2000 3-10 0-45ºC
Column shaped 300-2000 3-10 0-45ºC
Special shaped 300-2000 3-10 0-45ºC



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
