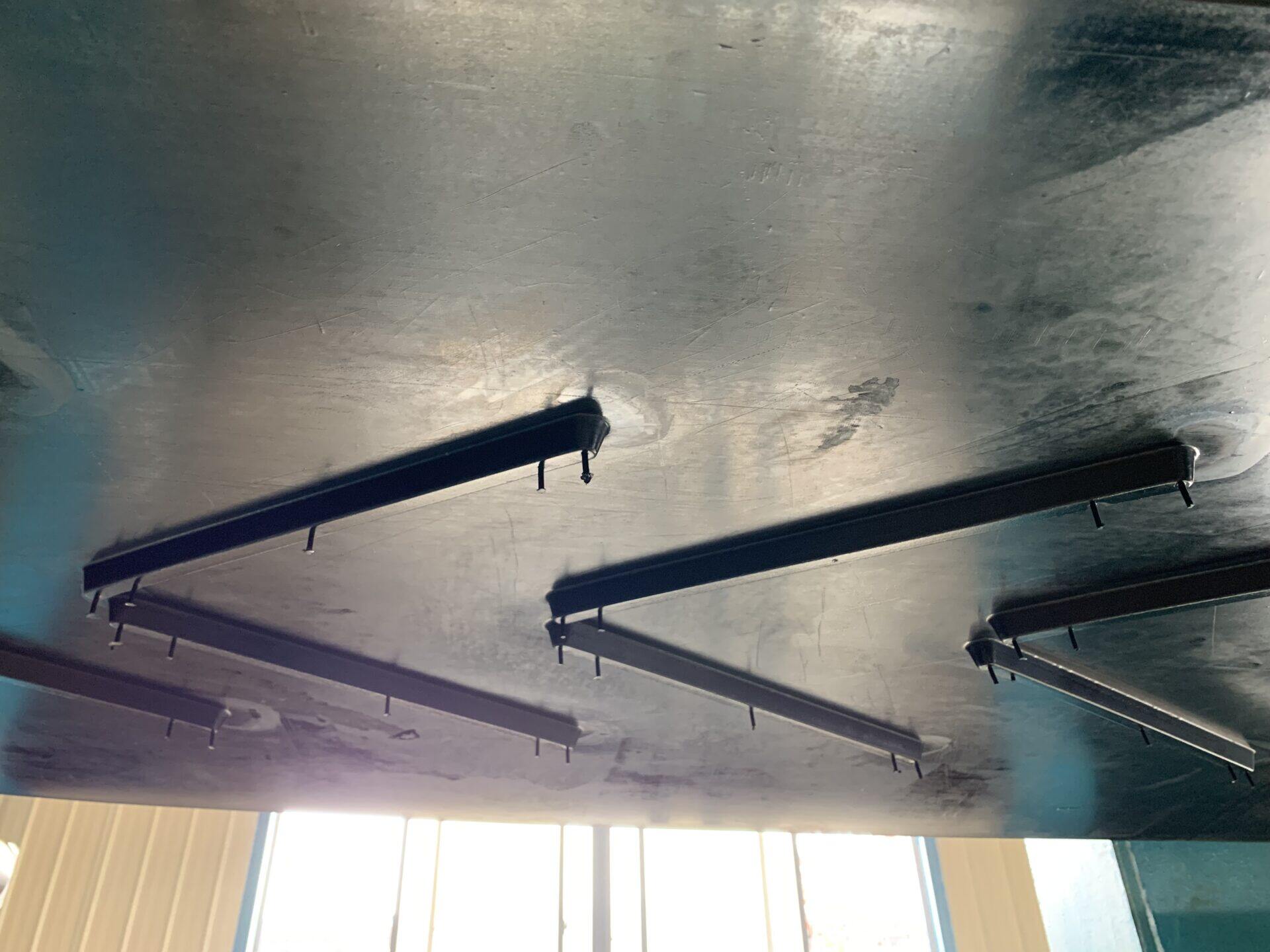

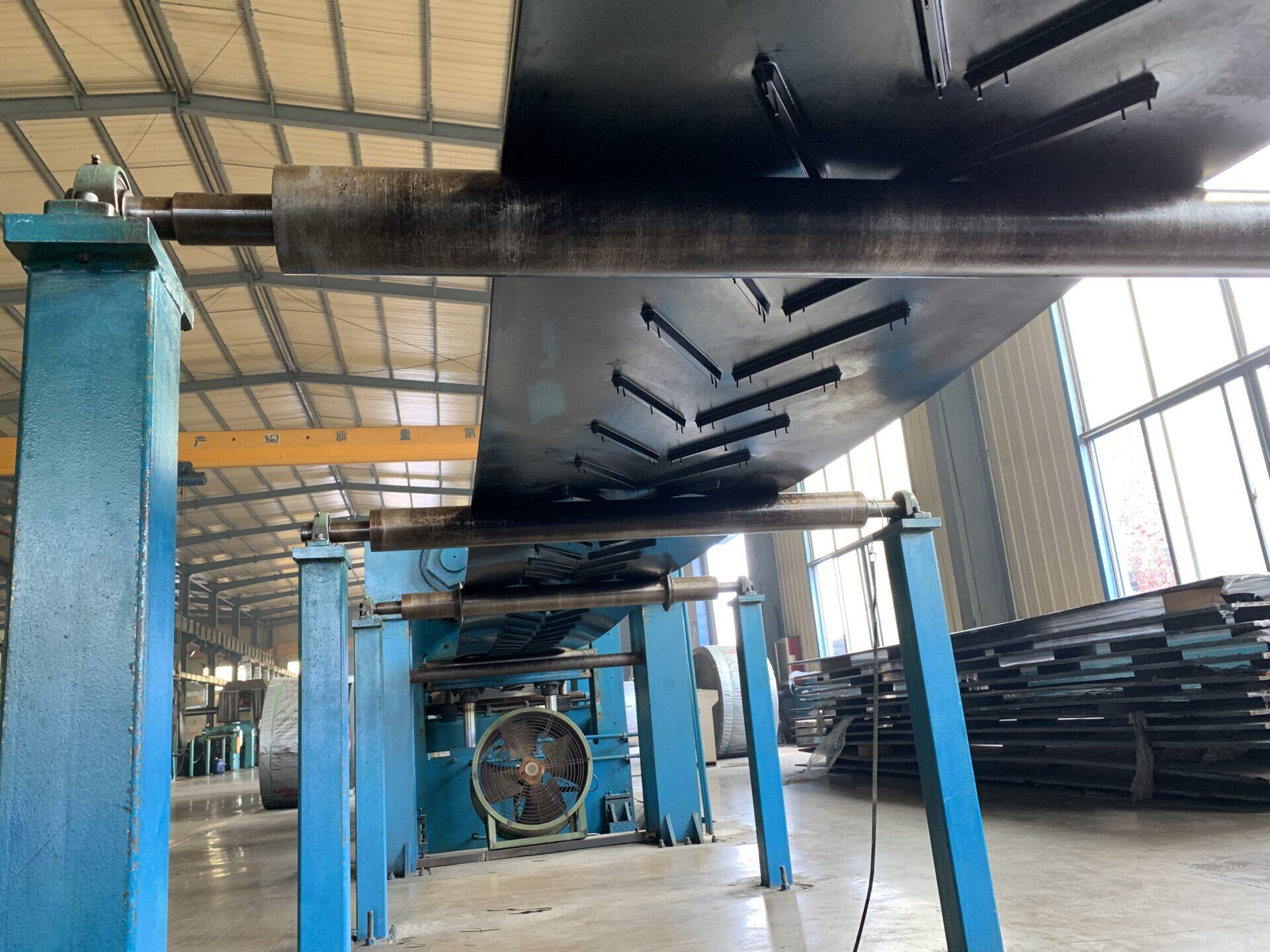

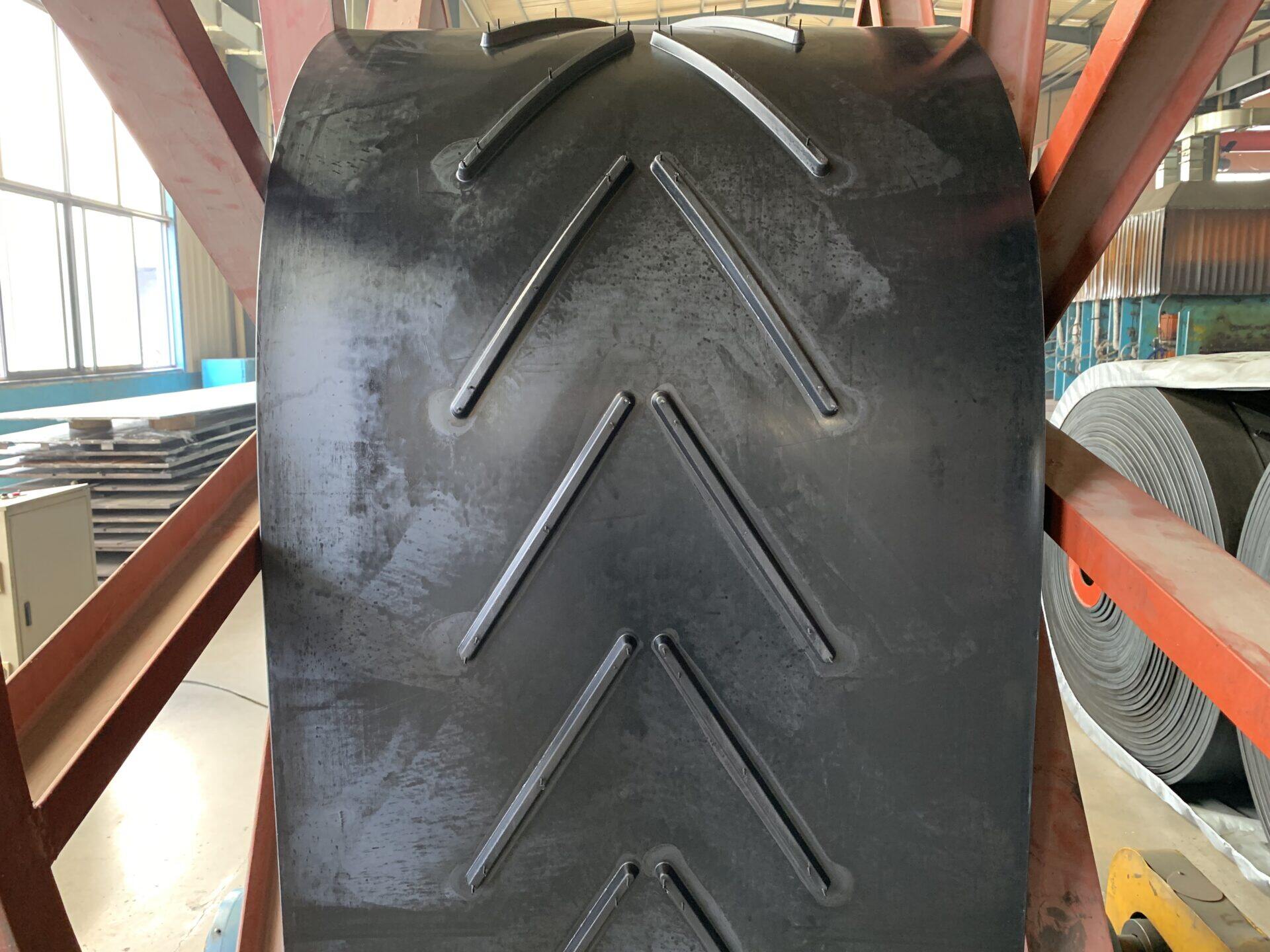

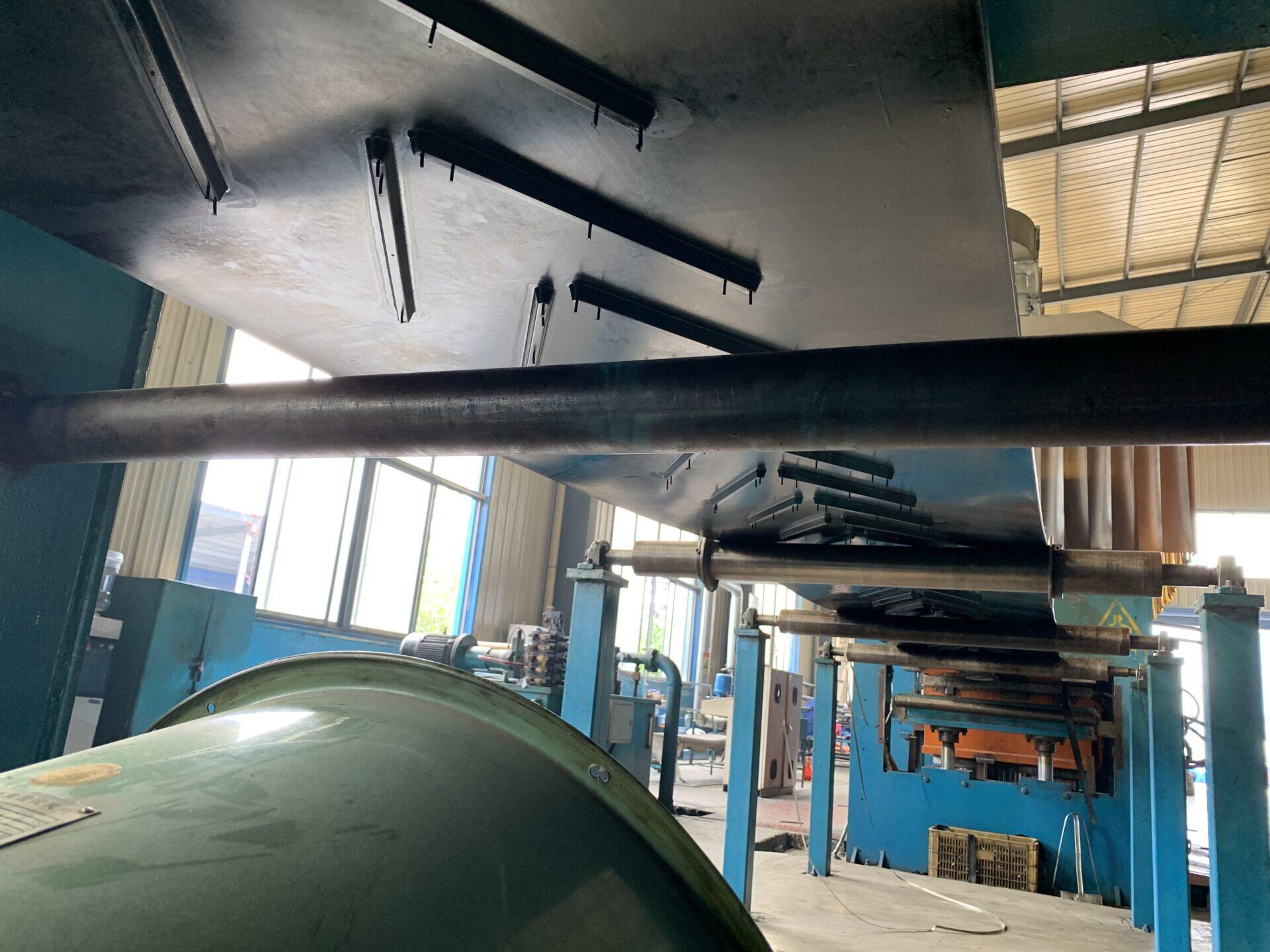

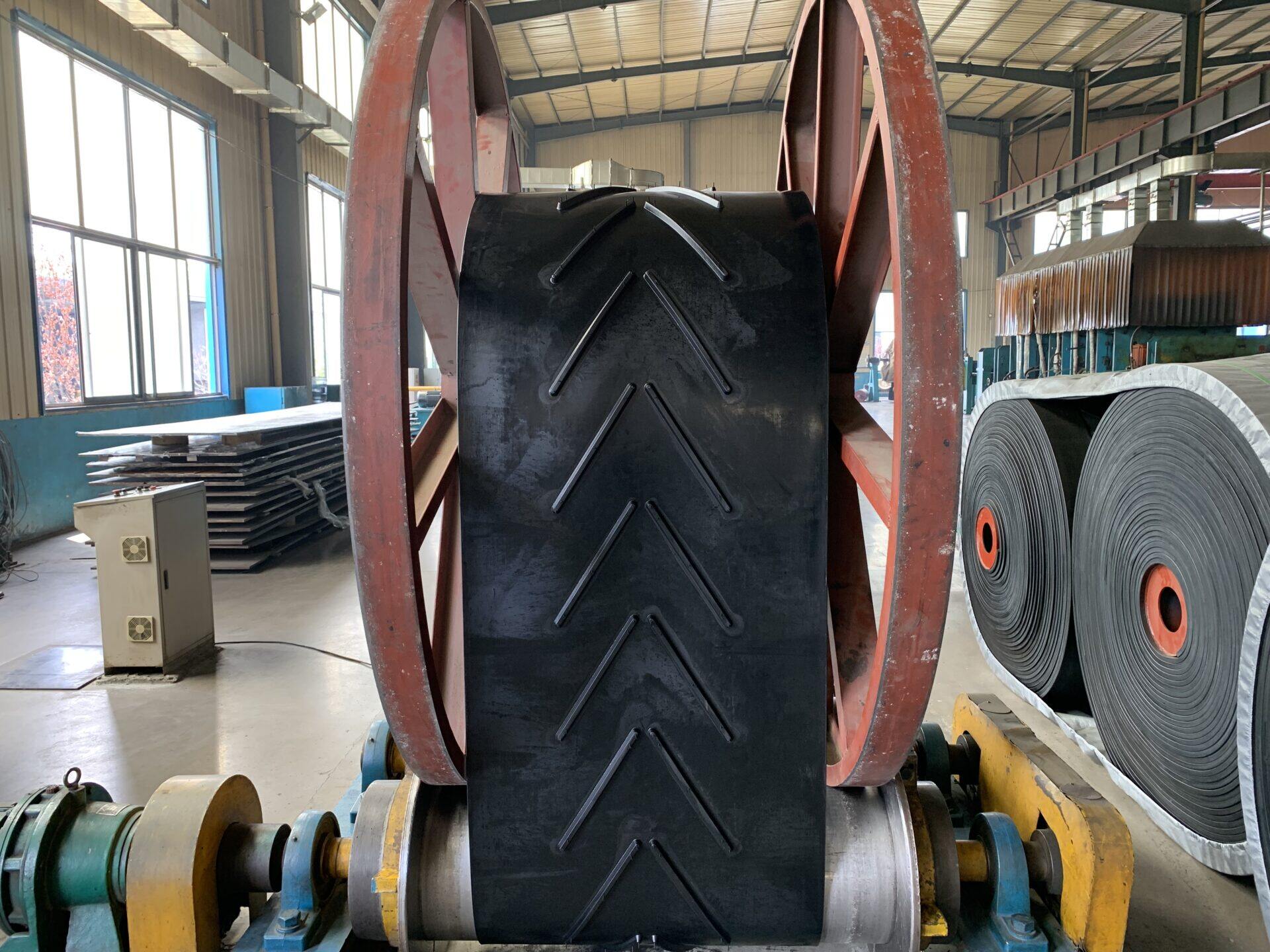

An open V chevron conveyor belt is a type of conveyor belt that features a V-shaped pattern on its surface. The pattern is designed to help grip and transport materials that might otherwise slip or slide on a smooth surface. The V-shaped pattern consists of raised ridges, called chevrons, that run along the length of the belt. These ridges allow the belt to grip materials and move them along the conveyor.
Open V chevron conveyor belts are commonly used in applications where materials need to be transported up steep inclines or through areas with high friction. They are often used in the mining and construction industries, where materials such as gravel, sand, and rocks need to be transported over rugged terrain.
In addition to their superior grip, open V chevron conveyor belts are also known for their durability and resistance to wear and tear. They are available in a range of widths and thicknesses to accommodate different types of materials and conveyor systems.
— For steep angle conveying with incline less than 45º
— Allows the use of smaller pulley diameters.
— Cleat height range from 5mm to 25mm which is suitable to convey bulk material up to 80mm lump size.
— Available in several high quality covers including abrasion, heat, fire, oil and fat resistant.
— Chevron conveyor belts widths range from 400 up to 1200 mm
China GB/T7984 Standard
Germany DIN22102 Standard
US RMA Standard
UK EN ISO15236 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength TD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
|
DIN 22102 |
Mpa |
% |
mm3 |
N/mm | N/mm |
N/mm |
| (≤1.5mm) | (>1.5mm) | |||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
