Mining Conveyor Belt

Product Classification

According to the performance of the covering rubber, it can be divided into ordinary type, flame-retardant type, wear-resistant type, cold-resistant type, heat-resistant type, and other varieties.

According to the internal structure, it can be divided into ordinary structure type, transverse reinforcement type, and embedded coil tear-proof type.

Require Now

Product Use

The mining conveyor belt is usually used in mining, quarry, cement, iron & steel, power plant, agriculture, coal mine, and port for material transportation.

Product Structure

The mining conveyor belt is composed of an upper covering layer, lower covering layer, steel wire rope, adhesive layer, and side glue.

Product Features

High tensile strength

Good impact

Low elongation

Excellent flexibility

Suitable for long distance, high capacity, high speed mining transportation

Executive Standard

GB/T9770, DIN22131, EN ISO 15236, SANS1366 and A1333.

Main Technical Parameters

Belt Type ST/S
630		 ST/S
800		 ST/S
1000		 ST/S
1250		 ST/S
1600		 ST/S
2000		 ST/S
2500		 ST/S
2800		 ST/S
3150		 ST/S
3500		 ST/S
4000		 ST/S
4500		 ST/S
5000		 ST/S
5400
Min. Tensile Strength (N/mm) 630 800 1000 1250 1600 2000 2500 2800 3150 3500 4000 4500 5000 5400
Max. Diameter Of Steel Cord (mm) 3.0 3.5 4.0 4.5 5.0 6.0 7.2 7.5 8.1 8.6 8.9 9.7 10.9 11.3
Min. Top/Bottom Cover Thickness (mm) 5.0 5.0 6.0 6.0 6.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.5 9.0
Belt Width Number Of Steel Cord
800 75 75 63 63 63 63 50 50 50 50
1000 95 95 79 79 79 79 64 64 64 64 64 59 55 55
1200 113 113 94 94 94 94 76 76 76 77 77 71 66 66
1400 133 133 111 111 111 111 89 89 89 90 90 84 78 78
1600 151 151 126 126 126 126 101 101 101 104 104 96 90 90
1800 171 171 143 143 143 143 114 114 114 117 117 109 102 102
2000 196 196 159 159 159 159 128 128 128 130 130 121 113 113
2200 216 216 176 176 176 176 141 141 141 144 144 134 125 125



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

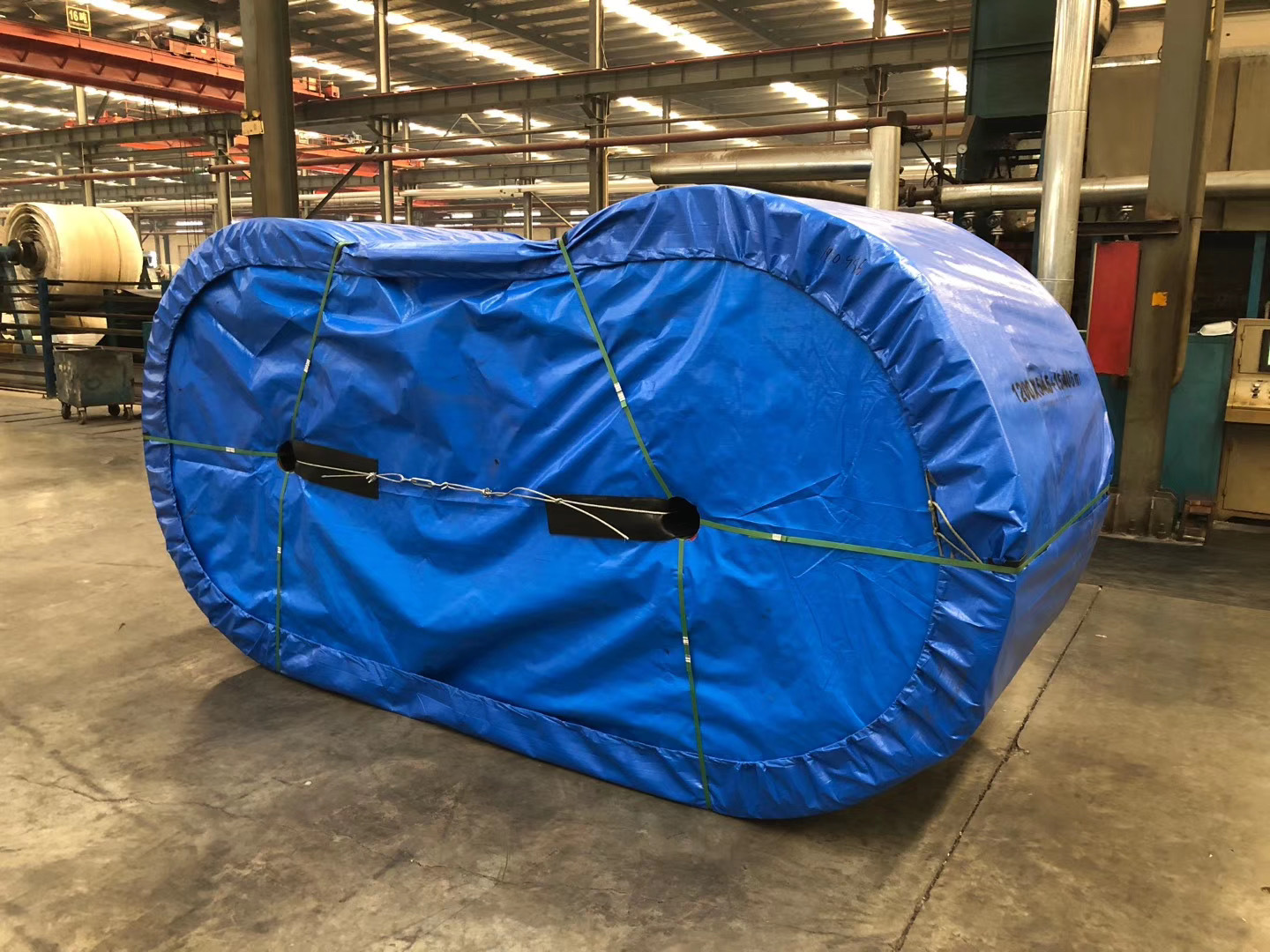

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
