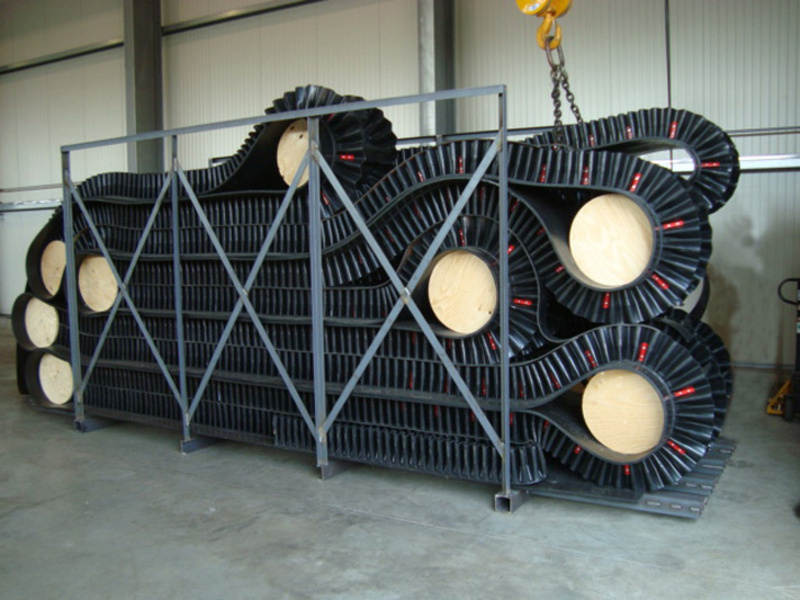

Sidewall Range

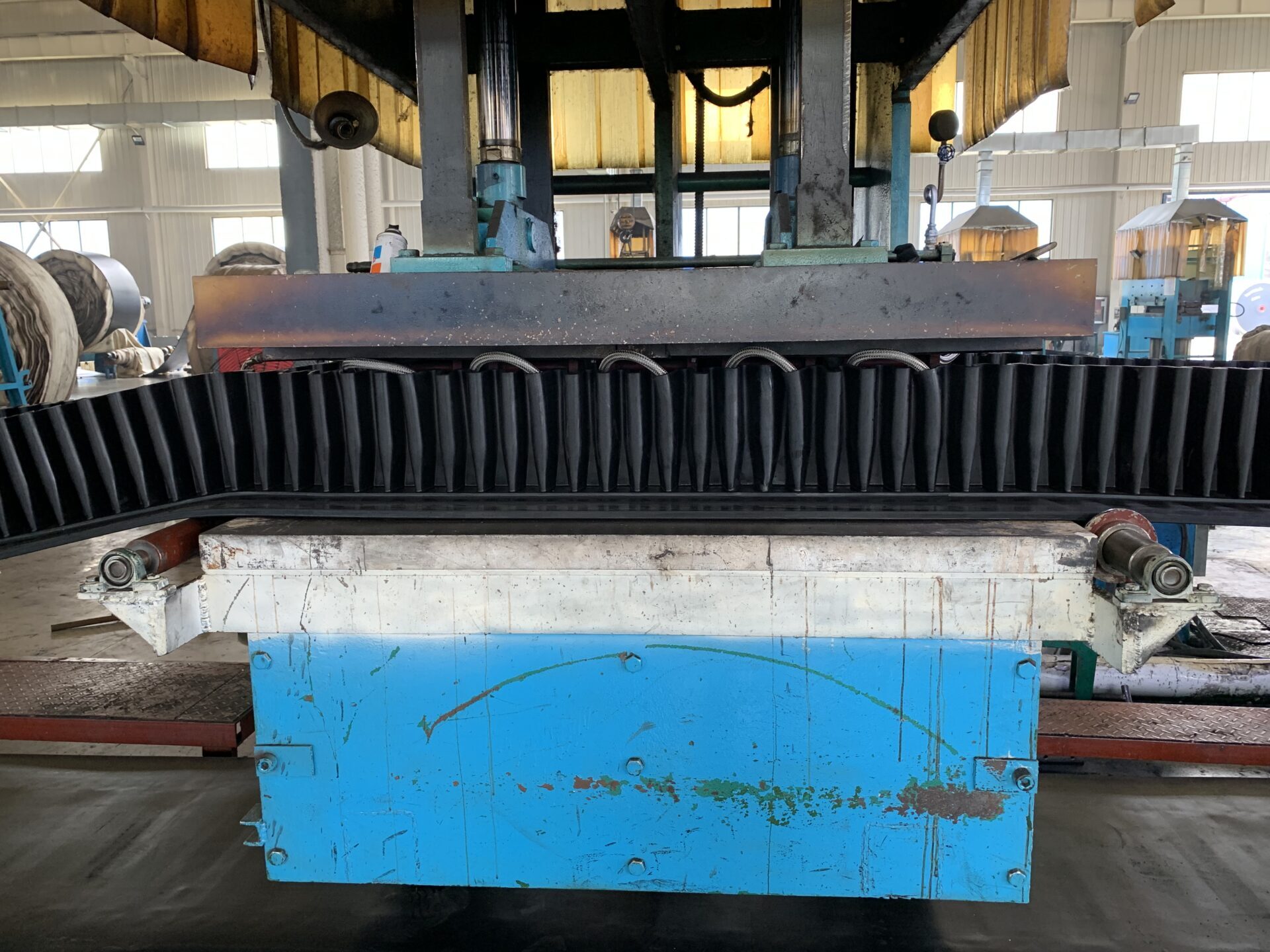

The sidewall design ensures maximum flexing without fatigue, the profile has excellent vertical stability for load retention and return side support. The design allows for high compression to ensure smooth inner deflection around small radii. Another important design feature is that the sidewalls can be pressed form both sides when being applied to the base belt, this offers much higher bond strengths and security. The fabric insertion is of the diagonal type which gives excellent tear resistance and also allows the sidewall to flex more easily.

Main Rubber Types

Normal Standard High Abrasion Resistant

Moderate Oil Resistant

Heat Resistant to 150℃

High Heat Resistant to 180℃

Flame Retardant

Other qualities may be available to special order, please contact us.

*Our sidewalls type MDSF 120mm and higher have special diagonal fabric reinforcement in the corrugations as standard, but smaller sidewalls can have this feature where required.

*The above pulley diameter is limited to ordinary grade and standard coating rubber thickness. When the special grade of coating rubber and strength are different, a larger pulley diameter may be required. Please consult for specific specifications.

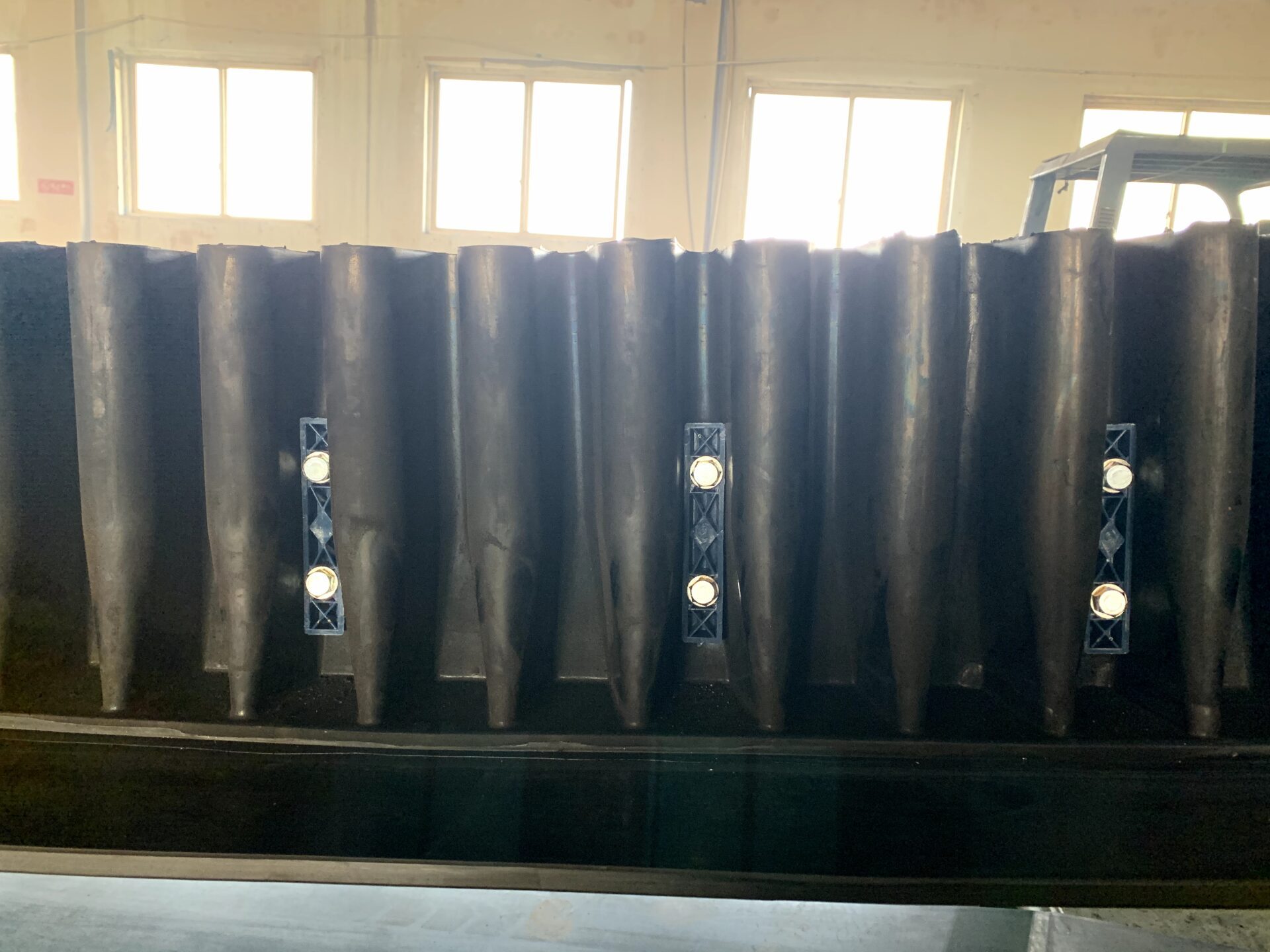

Cleat Range

When the conveying angle is less than 40 degrees, the cleat is generally T type; when the conveying angle is greater than 40 degrees, the cleat is generally C type, TC type or TCS type. The fine adjustment of the cleat distance needs to consider the correspondence with the sidewall wave crest, and the side bolt fastening device matched with different types of cleats can prevent materials from leaking from the gap between the cleats and unloading to cause accumulation of dead ends.

*Our cleats form 110mm and higher have special diagonal fabric reinforcement in the vertical and angled parts, but smaller cleats can have this feature when required.
