Incline belting refers to the use of conveyor belts that are designed to transport materials up inclined surfaces or steep slopes. Incline belting is commonly used in industries such as mining, construction, agriculture, and waste management, as it enables the efficient movement of materials over sloped terrain.
Incline belting is used in high-incline environments, utilizing cover textures and vulcanized profiles to keep transported materials secure while in motion. With an array of different compounds available for fabrication, incline belts can be implemented with virtually any application.Incline belting systems can be customized according to the specific needs and requirements of each industry, and can range from small, portable systems to large, heavy-duty systems for mining and construction applications.

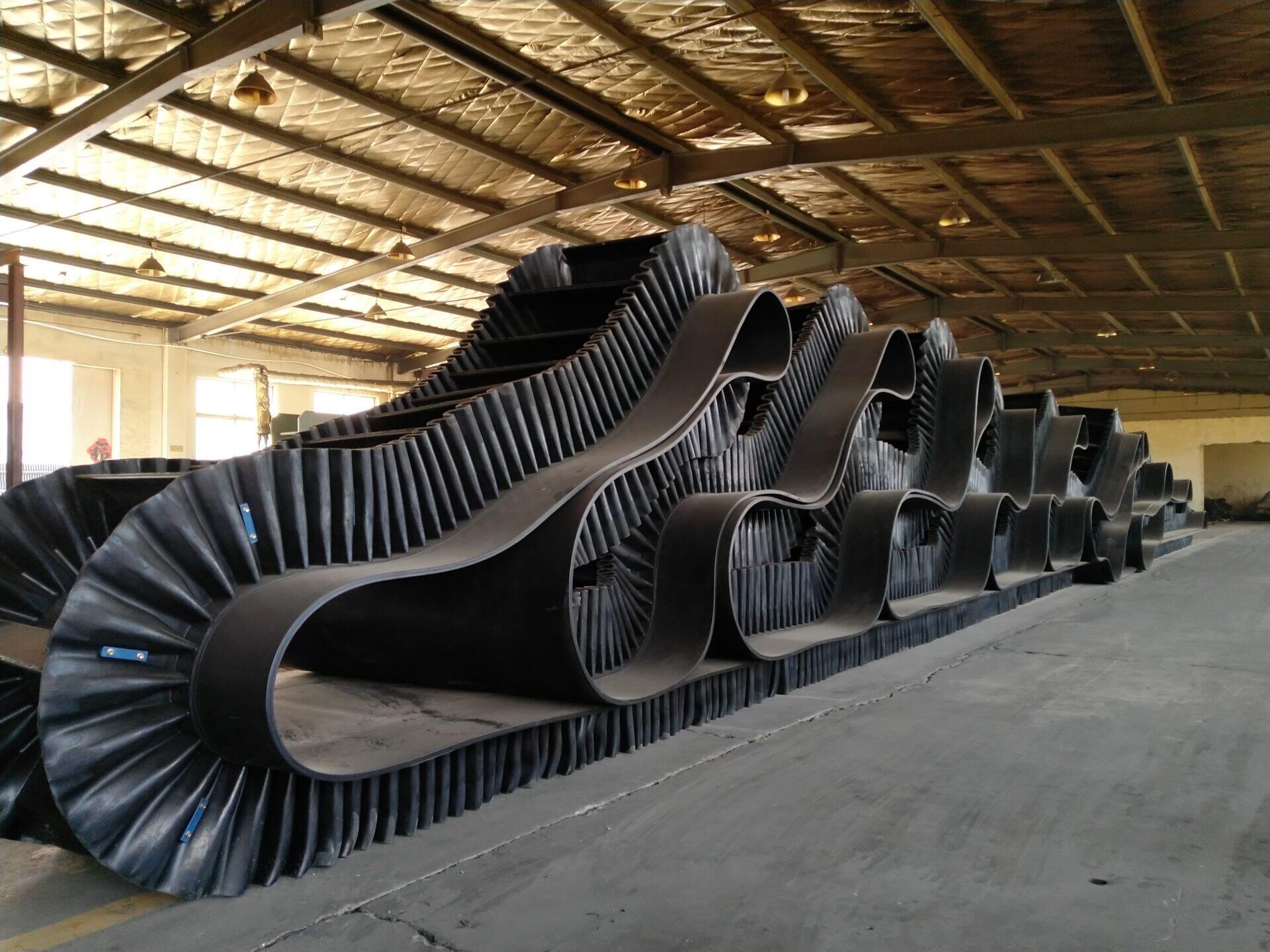

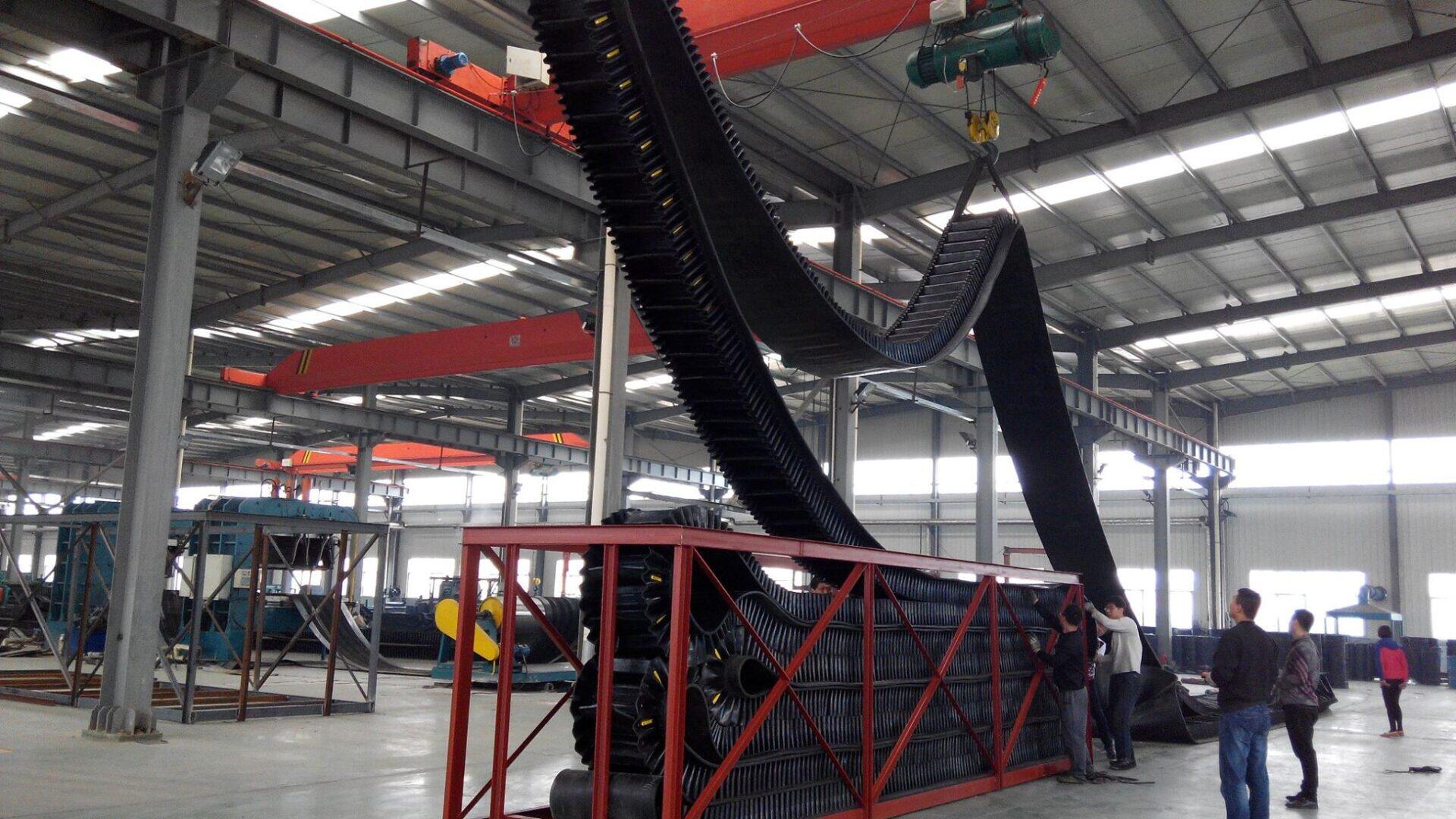

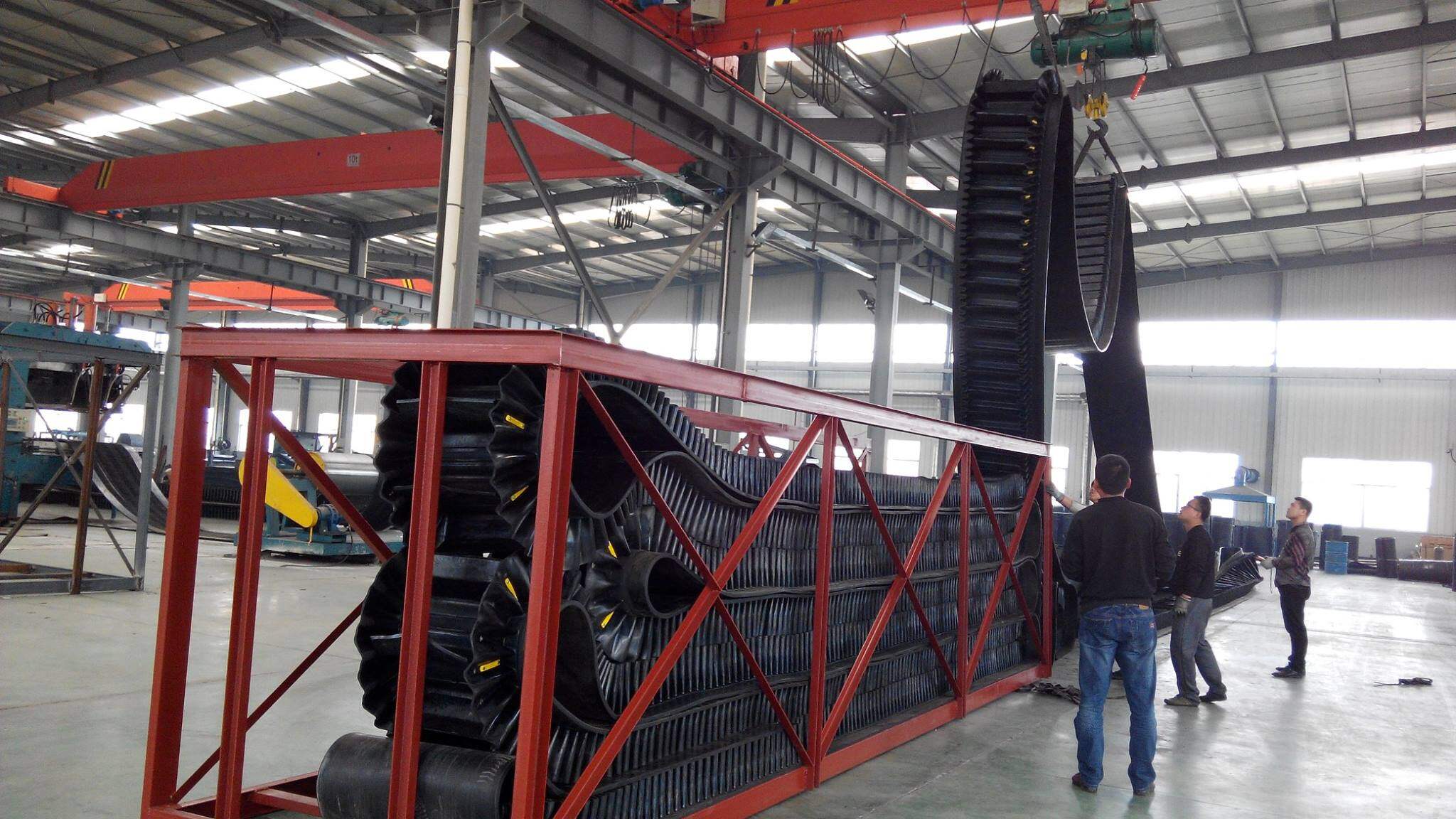

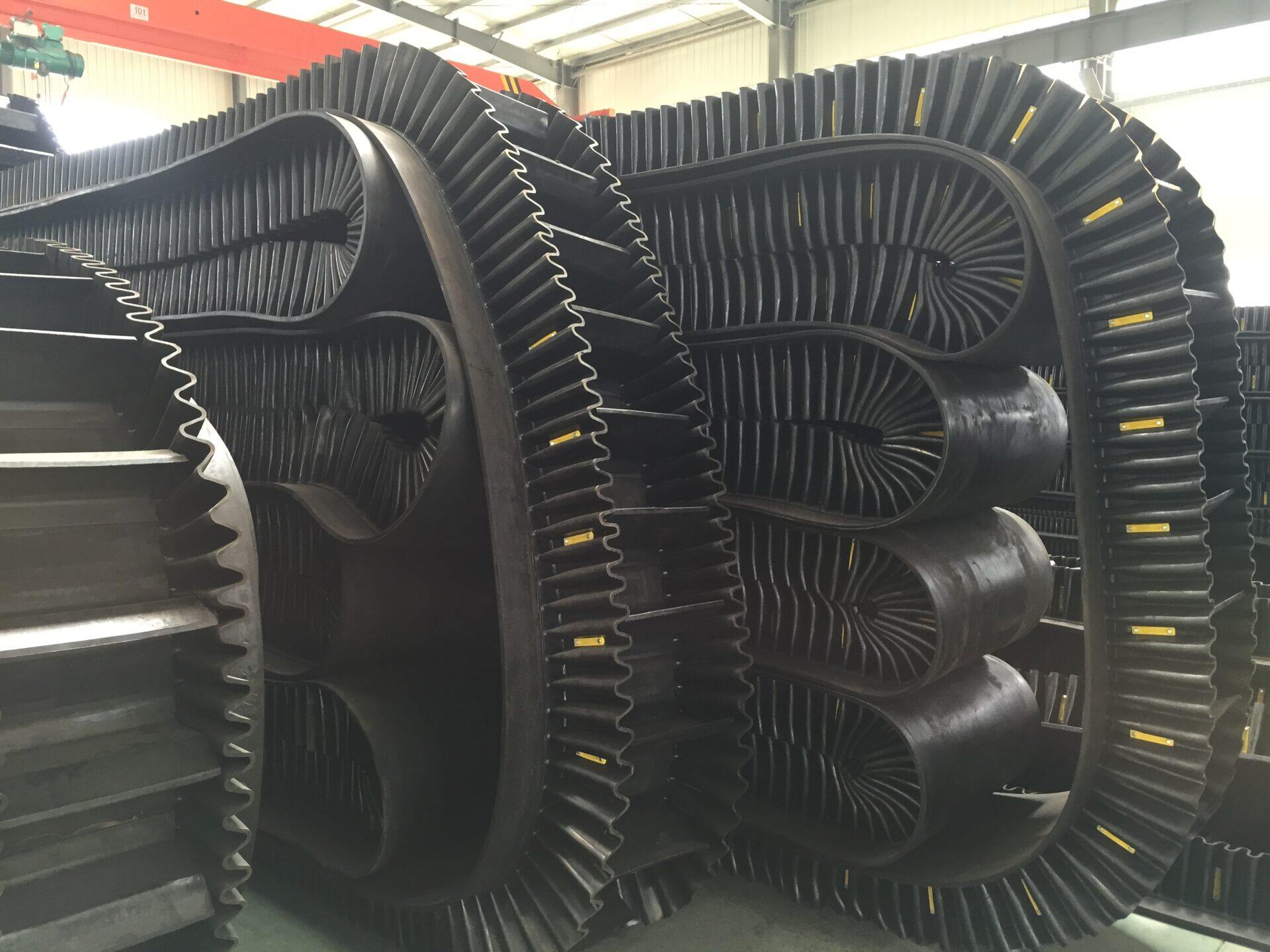

The conveyor belts used for incline belting are designed with special features like chevron patterns or cleats, which provide increased traction and prevent materials from slipping or spilling during transportation. These incline belts are designed to prevent or reduce slide-back on inclines. Chevron and Steepclimb belting also increase conveyor capacity by quick pick up at the point of loading. Ideal for granular materials such as wet sand and gravel.
China GB/T7984 Standard
Germany DIN22102 Standard
US RMA Standard
UK EN ISO15236 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
| Belt | PVC Belt with baffle, with 2sides skirt walls to |
| Size | 2000incline+500flat mm L*500mm W*200-2000H |
| Stainless steel Hopper | with bottom hopper for feeding |
| Structure Material | Aluminium,
(304 stainless steel , steel for options) |
| Motor | 750W (or as your required) |
| Running speed | 1-10m/min (or as your required) |
| Voltage | 110V/220V/380V/480V |
| Foot Cup /Casters | shock proof quality |
| Shipping | BY SEA, BY AIR, BY EXPRESS |
| Weight-bearing | 10-200 KGS |
| packing | inner with water-proof film, outer by woodcase |
| Warranty period | 1 year |
| Inspection | provide photo and video for confirm before shipping |
| Lead time | 3-4 days |
