According to the structure: common type and impact-resistant, tear-resistant type.
According to the purpose: ordinary type, wear-resistant, heat-resistant, cold-resistant, acid-alkali-resistant, flame-retardant, tear-resistant, flame-retardant, ozone-resistant and other types.

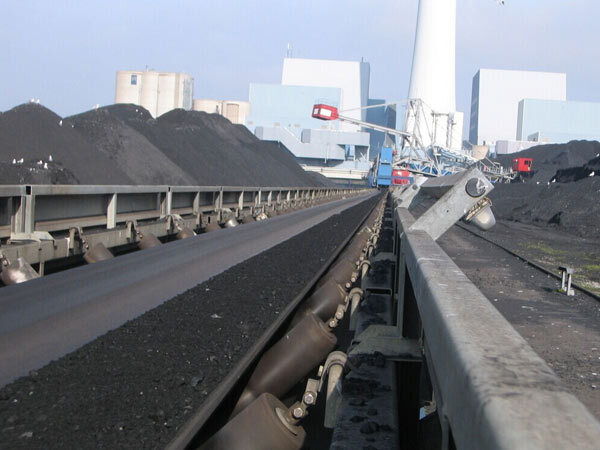

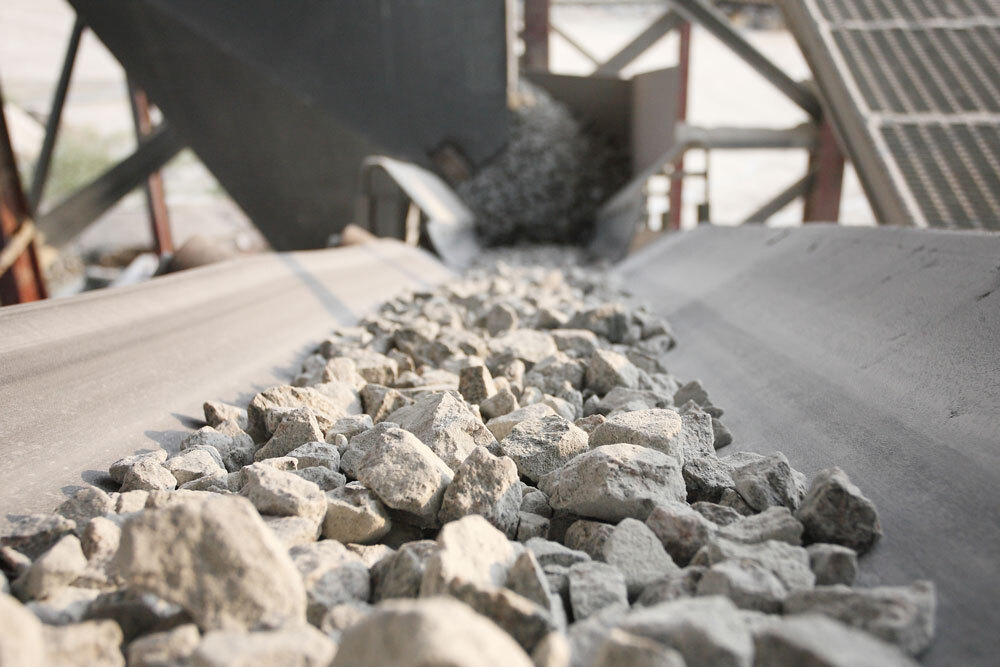

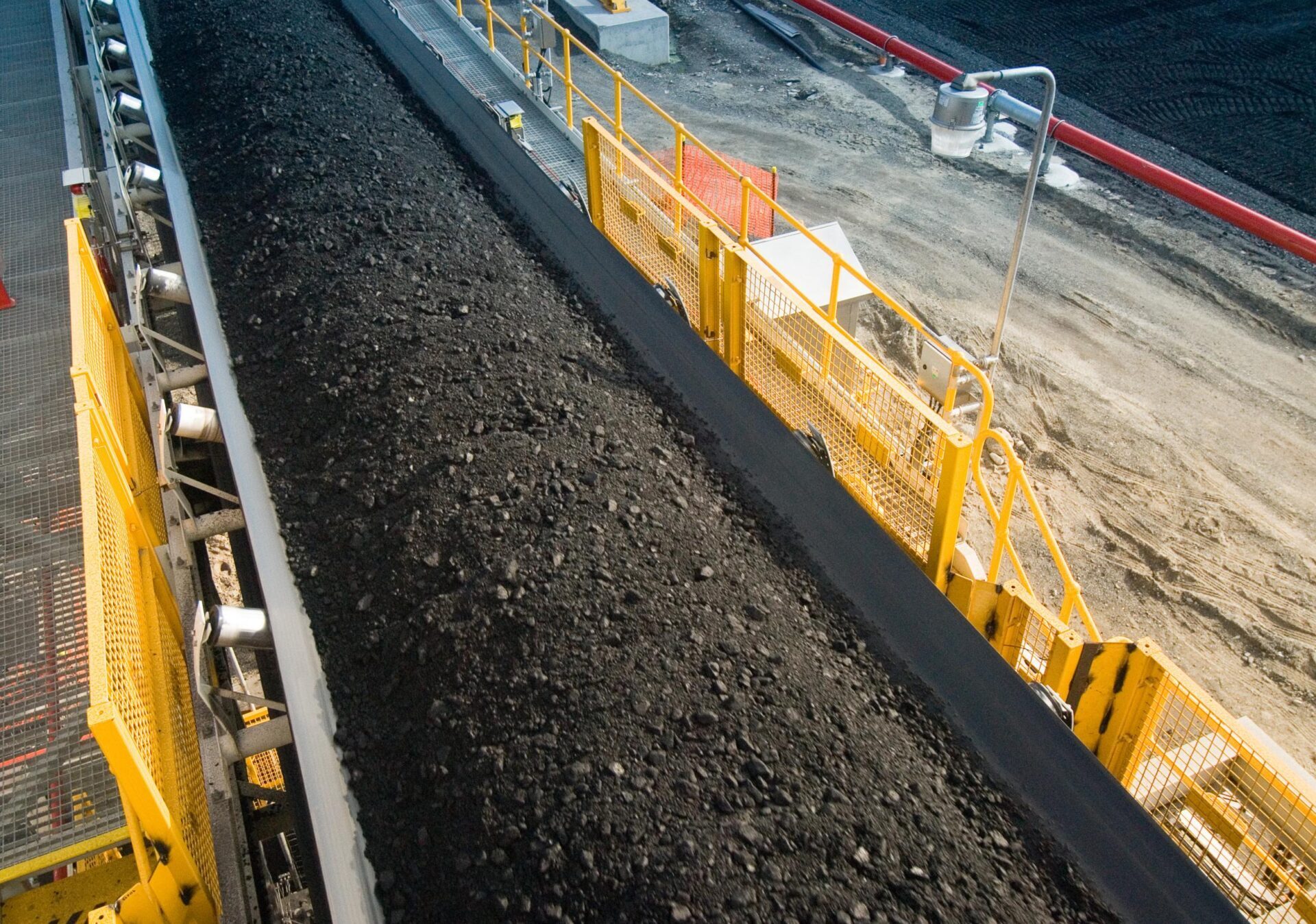

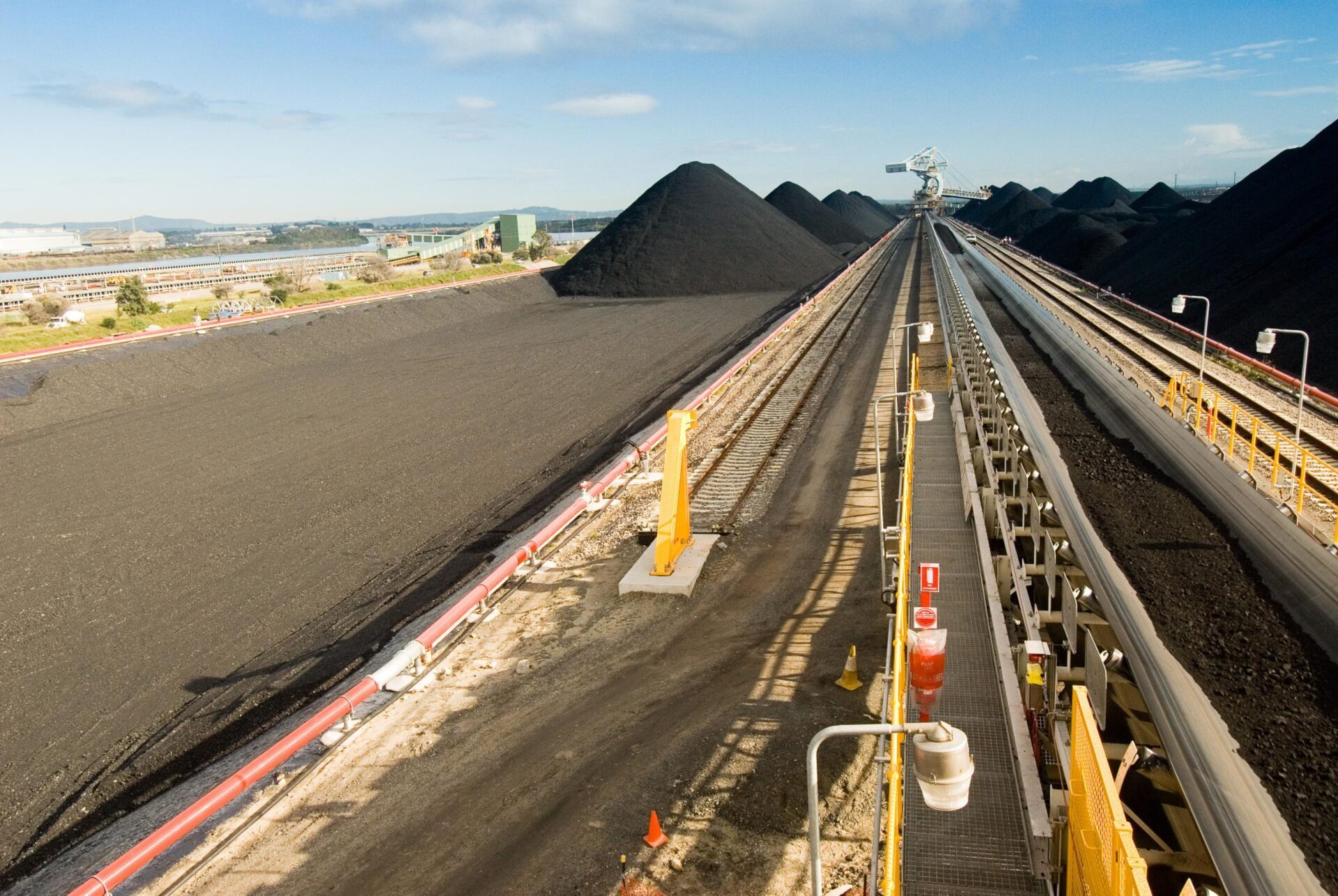

Heavy duty conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry and other fields. It is suitable for conveying massive, granular and powder materials in high-strength, long-distance and large volume situations.

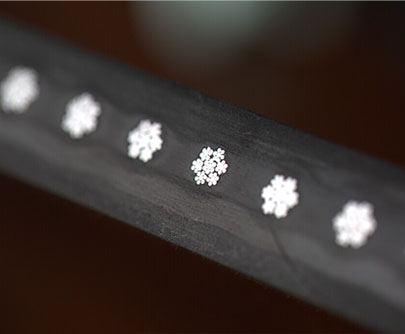

It is composed of upper coating layer, lower coating layer, steel wire rope, adhesive layer and side glue.
This product has the characteristics of high tensile strength, impact resistance, good elasticity, high wear resistance, small use elongation, good adhesion between rubber and steel cord rope, even tension of steel cord rope, good slotting performance, etc. It is suitable for conveying massive, granular and powdery materials in high-strength, long-distance and large traffic situations.
China GB/T7984 Standard
Germany DIN22102 Standard
US RMA Standard
UK EN ISO15236 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
|
Belt strength |
Tensile strength （N/mm）
|
Steel cord （mm） |
A steel cord （mm） |
A steel cord （KN） |
Minimum thickness of coating （mm） |
Adhesion strength of steel cord rope
≥ |
|
| Before aging | After
aging |
||||||
| ST-500 | 500 | 14 | 3.0 | 7.6 | 4.0 | 60 | 50 |
| ST-630 | 630 | 10 | 3.0 | 7.0 | 4.0 | 60 | 50 |
| ST-800 | 800 | 10 | 3.5 | 8.9 | 4.0 | 67.5 | 57.5 |
| ST-1000 | 1000 | 12 | 4.0 | 12.9 | 4.0 | 75 | 65 |
| ST-1250 | 1250 | 12 | 4.5 | 16.1 | 4.0 | 82.5 | 72.5 |
| ST-1400 | 1400 | 14 | 5.0 | 20.6 | 4.0 | 90 | 80 |
| ST-1600 | 1600 | 12 | 5.0 | 20.6 | 4.0 | 90 | 80 |
| ST-1800 | 1800 | 13.5 | 5.6 | 25.5 | 4.0 | 99 | 89 |
| ST-2000 | 2000 | 12 | 6.0 | 25.6 | 4.0 | 105 | 95 |
| ST-2250 | 2250 | 11 | 5.6 | 26.2 | 4.0 | 99 | 89 |
| ST-2500 | 2500 | 15 | 7.2 | 40.0 | 5.0 | 123 | 113 |
| ST-2800 | 2800 | 13.5 | 7.2 | 39.6 | 5.0 | 123 | 113 |
| ST-3150 | 3150 | 15 | 8.1 | 50.5 | 5.5 | 136.5 | 126.5 |
| ST-3500 | 3500 | 15 | 8.6 | 56.0 | 6.0 | 144 | 134 |
| ST-4000 | 4000 | 15 | 8.9 | 63.5 | 6.5 | 148.5 | 138.5 |
| ST-4500 | 4500 | 16 | 9.7 | 76.3 | 7.0 | 160.5 | 150.5 |
| ST-5000 | 5000 | 17 | 10.9 | 91.0 | 7.5 | 178.5 | 168.5 |
| ST-5400 | 5400 | 17 | 11.3 | 98.2 | 8.0 | 184.5 | 174.5 |
