EP Conveyor Belt

Product Classification

According to whether there is edge rubber: Molded edge belt and Cut edge belt.

According to their cover rubber types: Heat-resistant, Oil-resistant, Flame-resistant, and Anti-static, among others. The appropriate cover rubber type is selected based on the specific application requirements.

Require Now

Product Use

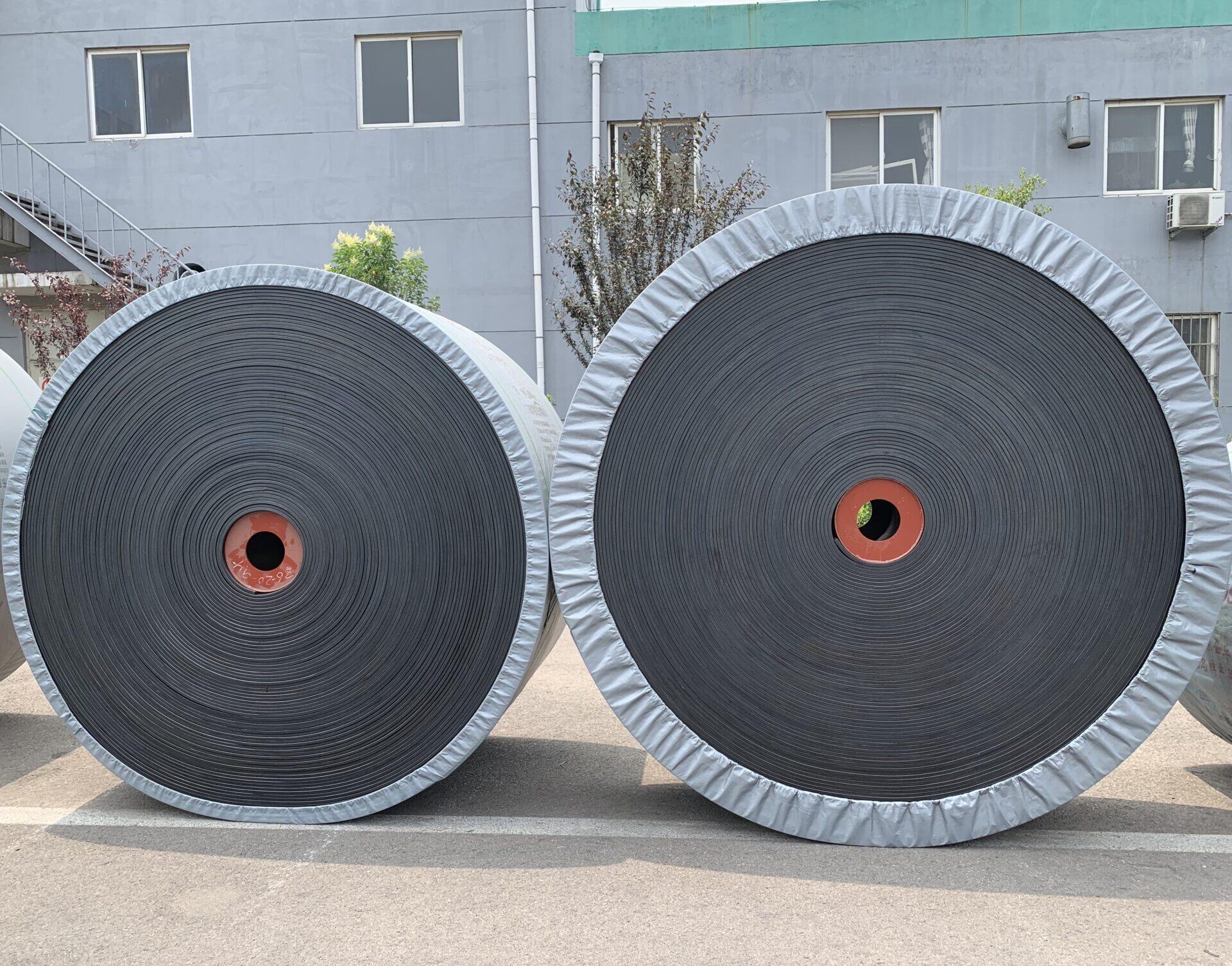

Polyester conveyor belt (usually named as EP conveyor belt), applied for medium and long distance for heavy loading materials, its tension resistant body is canvas woven by polyester in warp and nylon in weft. Its advantage including low elongation, impact resistance, high stability and high heat resistance.

Product Structure

An EP conveyor belt usually consists of the following components:

  1. Top cover layer – this is the outer layer of the belt and protects the carcass from wear and tear, abrasion, and other damage.
  2. Carcass – this is the main body of the belt and provides the tensile strength required to carry material.
  3. Bottom cover layer – this is the inner layer of the belt and protects the carcass from moisture, heat, and other forms of damage. It also prevents material from penetrating the carcass and causing damage.
  4. Fabric plies – these are the layers of polyester and nylon fabric that make up the carcass. The number of plies used in the construction of the belt determines its tensile strength and overall durability.EP conveyor belts can also have additional components such as edge reinforcements, splice materials, and other features depending on the specific application requirements.

Product Features

Polyester (EP) conveyor belt has the advantages of high initial modulus, the good thermal stability of belt body size, fatigue and wear resistance, erosion resistance of water/steam/chemical, high strength, small elongation, impact resistance, excellent groove formation ability and long service life. The polyester conveyor belt is the developing trend of the fabric conveyor belt.

Executive Standard

GB/T7984 Standard, DIN22102, RMA, AS1332, SABS 1173/2000, IS 1891, BS490, JIS K 6322, etc.

Main Technical Parameters

Fabric specs Ply thickness       (mm/p) Strength series (N/mm) Cover Thickness (mm) Width Length
    2ply 3ply 4ply 5ply 6ply Top Bottom mm m
EP80 0.60 160 240 320 400 480 2.0–8 0–4.5 400-2500 ≤300
EP100 0.75 200 300 400 500 600
EP150 1.00 300 450 600 750 900
EP200 1.10 400 600 800 1000 1200 500  —  2500
EP250 1.25 500 750 1000 1250 1500
EP300 1.35 600 900 1200 1500 1800
EP350 1.45   1050 1400 1750 2100 800  —  2500
EP400 1.55     1600 2000 2400 1000  —  2500
EP500 1.70     2000 2500 3000



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
