Corrugated Sidewall Conveyor Belting

Product Classification

  1. Standard Corrugated Sidewall Conveyor Belt: This is the most common type of corrugated sidewall conveyor belt, used in general applications for transporting a wide range of bulk materials.
  2. Oil Resistant Corrugated Sidewall Conveyor Belt: This type of belt is designed to resist oil and other petroleum-based products, making it ideal for use in industries such as oil refining and chemical processing.
  3. Heat Resistant Corrugated Sidewall Conveyor Belt: This type of belt is designed to withstand high temperatures, making it suitable for use in industries such as cement manufacturing and steel production.
  4. Flame Retardant Corrugated Sidewall Conveyor Belt: This type of belt is designed to resist flames and prevent fire from spreading along the conveyor, making it ideal for use in industries such as wood processing and recycling.
  5. Cold Resistant Corrugated Sidewall Conveyor Belt: This type of belt is designed to withstand low temperatures, making it suitable for use in cold storage and freezer applications.
  6. Abrasion Resistant Corrugated Sidewall Conveyor Belt: This type of belt is designed to resist wear and tear caused by abrasive materials, making it ideal for use in industries such as mineral processing and mining.
  7. Food Grade Corrugated Sidewall Conveyor Belt: This type of belt is designed to meet food safety regulations and is suitable for use in industries such as food processing and packaging.
Require Now

Product Use

Corrugated sidewall conveyor belting is used in conveyor systems for transporting a wide variety of bulk materials such as coal, sand, limestone, and other industrial materials. It is ideal for applications where materials need to be conveyed at steep inclines, or where space constraints require a compact conveying solution.

Product Structure

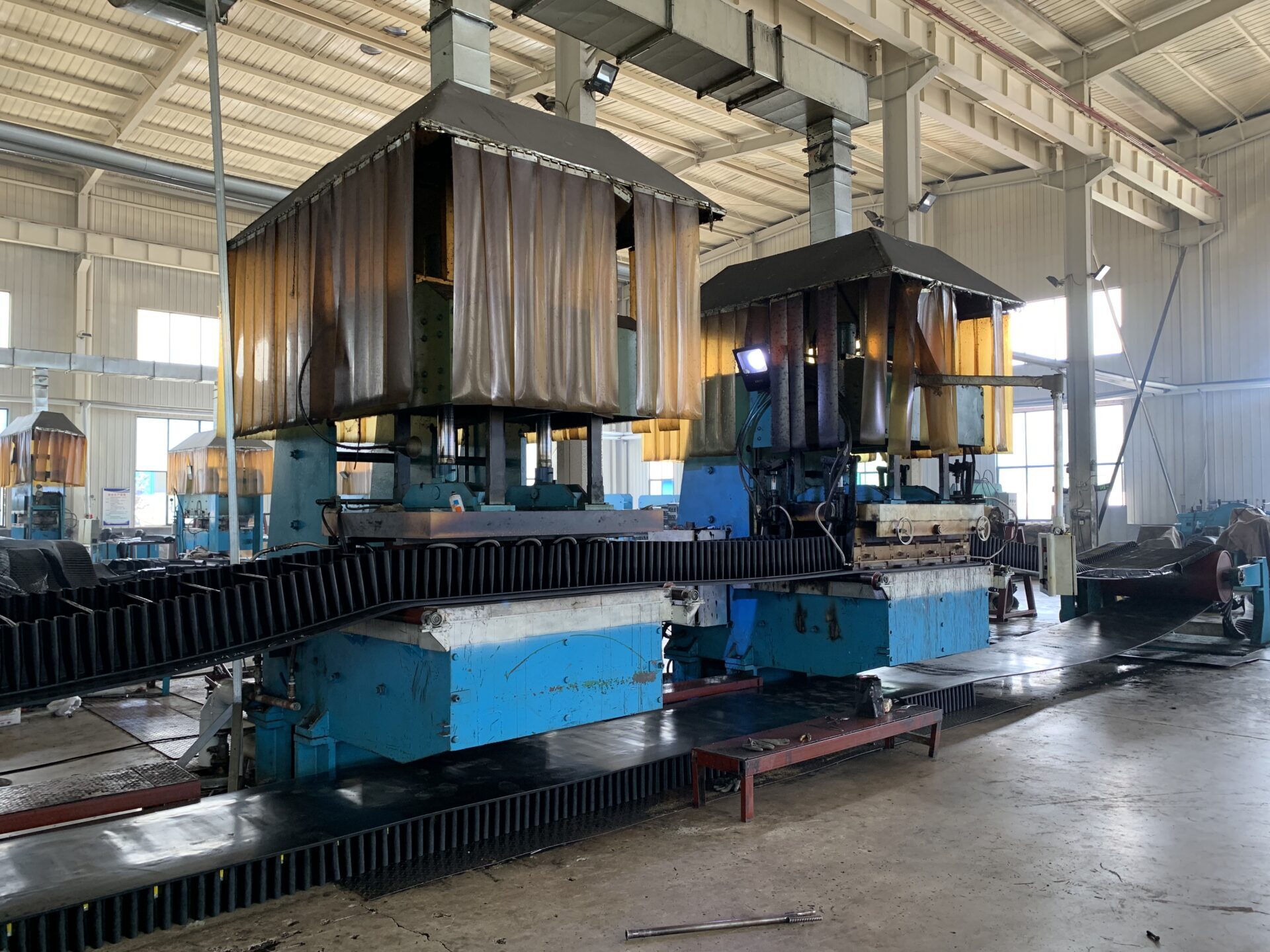

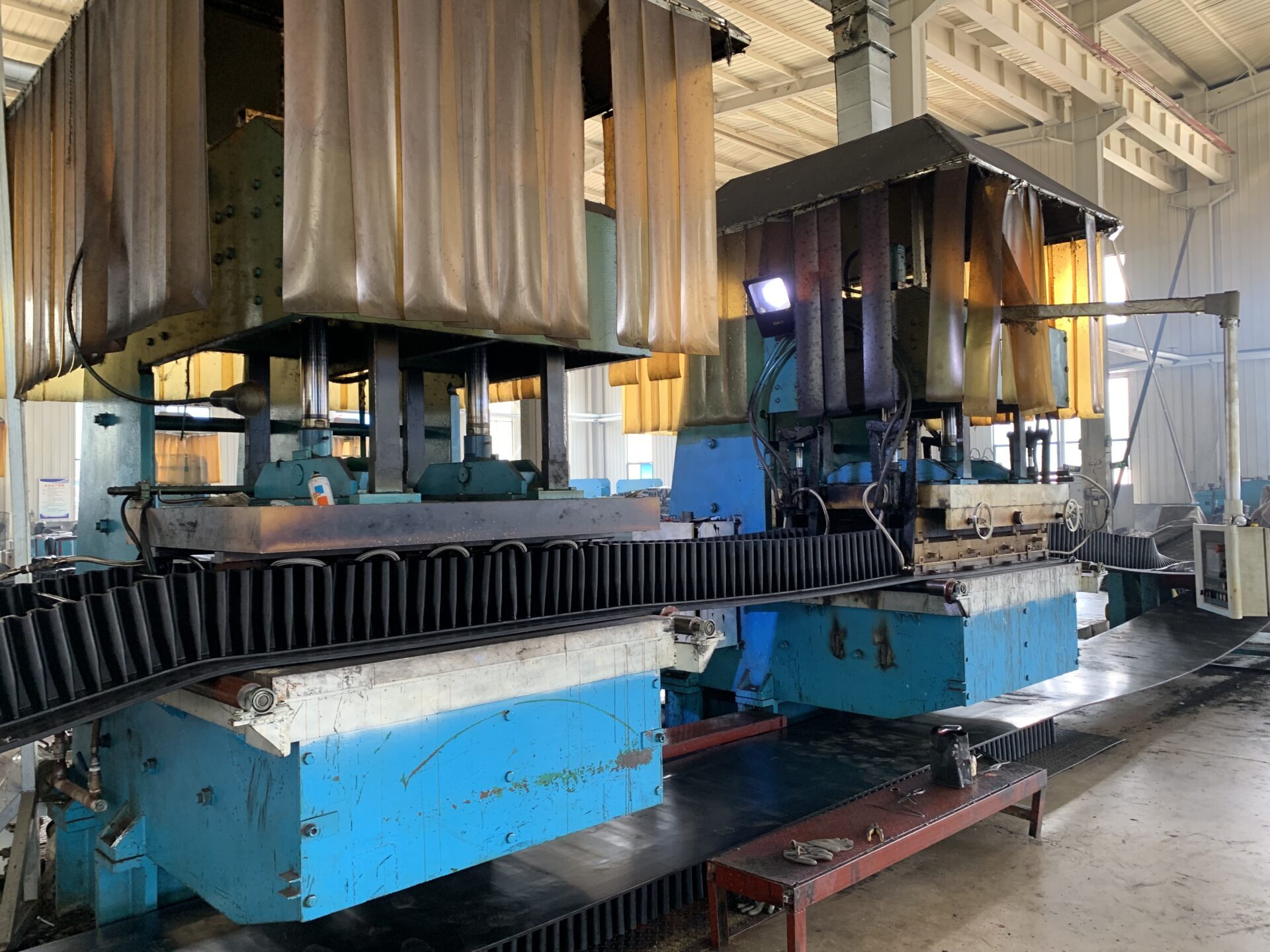

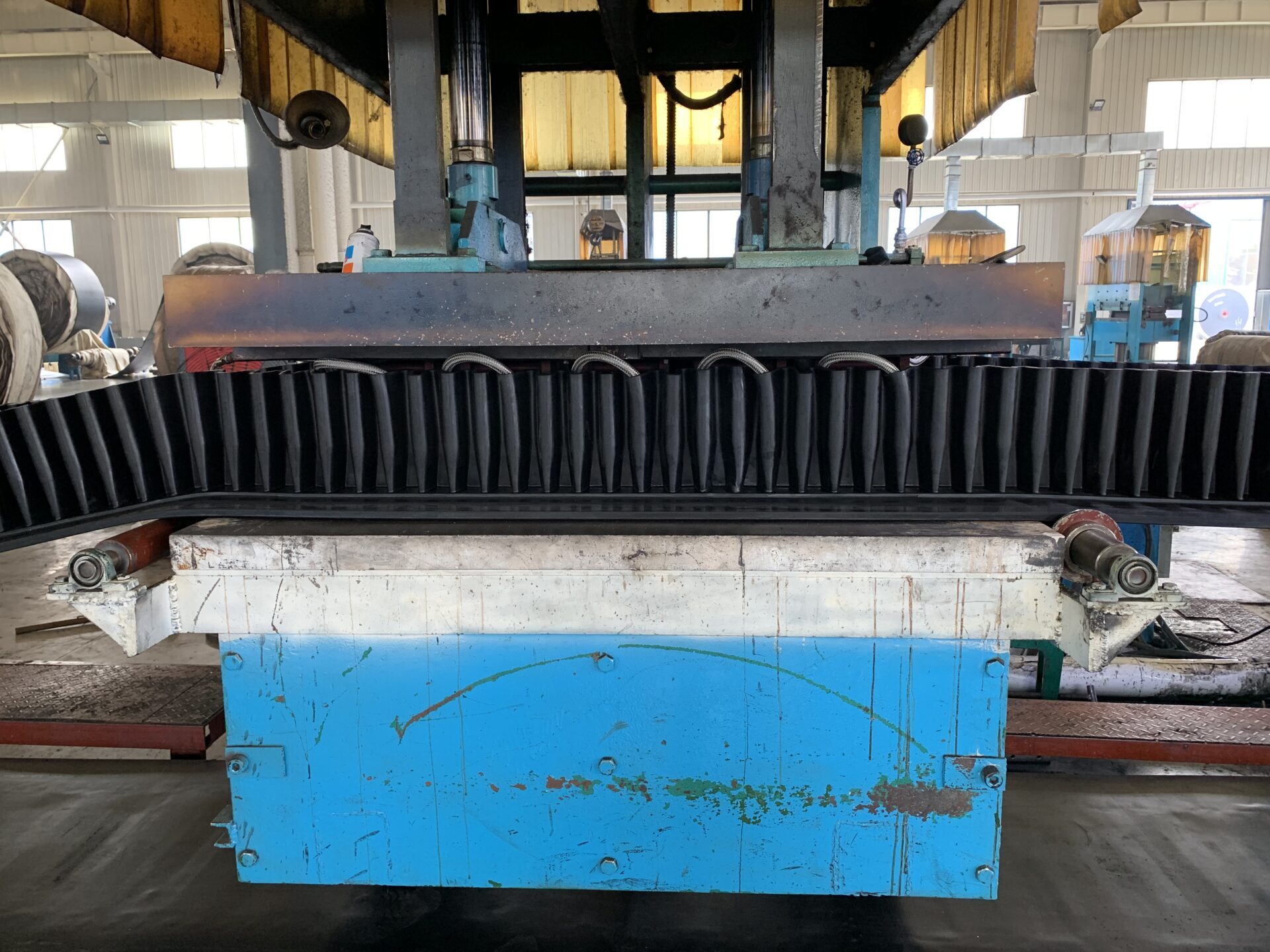

The structure of corrugated sidewall conveyor belting consists of a base belt, corrugated sidewalls, and cleats that are attached to the sidewalls. The corrugated sidewalls are attached to the base belt by hot vulcanization, and the cleats are also attached using the same process. The cleats help to keep the material being conveyed from slipping back down the inclined surface.

Product Features

  1. Increased carrying capacity compared to standard conveyor belts
  2. Ability to transport materials at steep inclines
  3. Reduced footprint: Corrugated sidewall conveyor belting requires less floor space than traditional conveyor belts, making it ideal for tight spaces.
  4. Improved safety: Prevents materials from spilling off the sides of the conveyor

Executive Standard

Some commonly used standards include DIN 22102, GB/T9770, AS1333, etc.

Main Technical Parameters

The parameter relationship of the base belt width and flange height
(mm):
Bandwidth
B
of base		 sidewall high
H		 cleat high
H1		 The wave
bottom wide
B1		 Effective
bandwidth
B2		 Empty
wide
B3		 Type of cleat
300 40 35 25 180 35 TC
60 55 50 120 40
80 75
400 60 55 50 180 60 TC
80 75
100 90
500 80 75 50 250 75 TC
100 90
120 110
650 100 90 50 350 100 TC
120 110
160 140 75 300
800 120 110 50 460 120 TC
160 140 75 410
200 180
1000 160 140 75 550 150 TC
200 180
240 220
1200 160 140 75 690 180 TC
200 180
240 220 100 640
300 260
1400 200 180 75 830 210 TC
