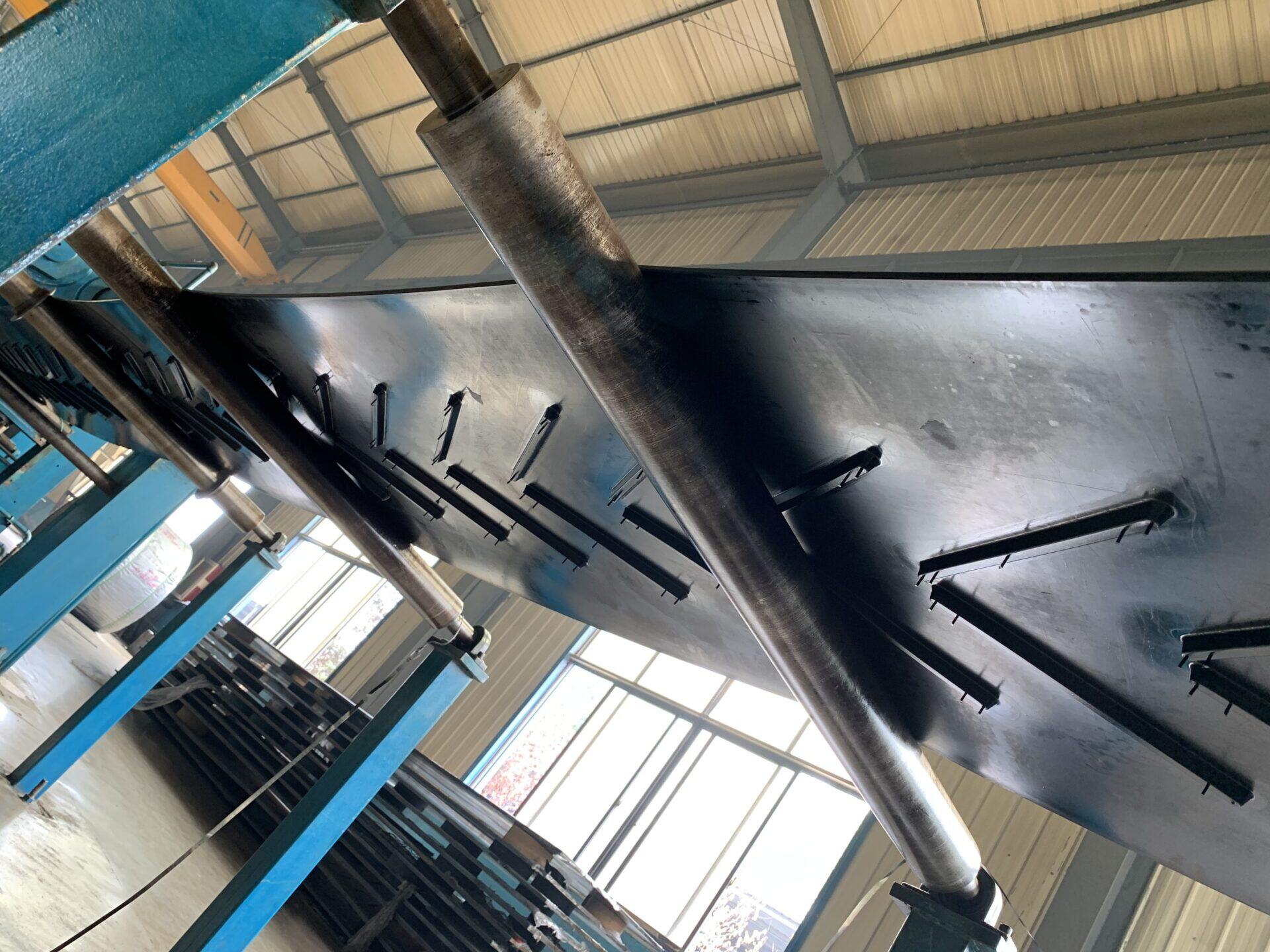

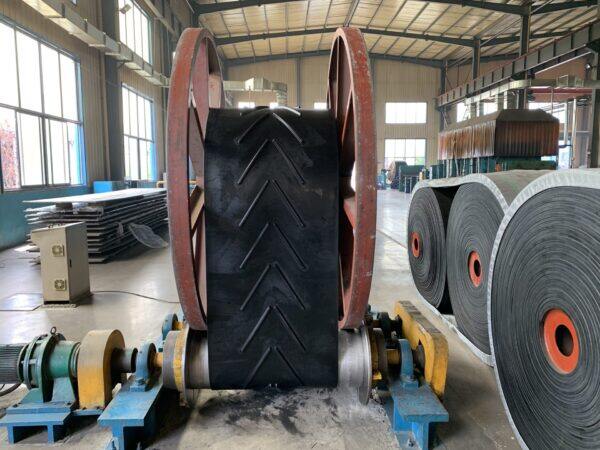

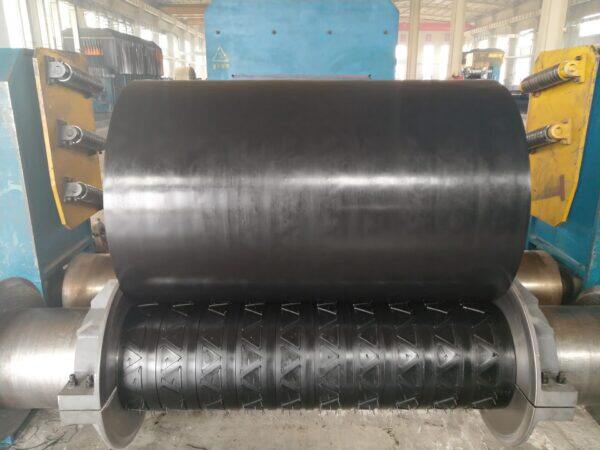

Chevron Cleated Rubber Conveyor Belts are meant to be utilized in conveying materials effectively at inclines greater than 18 angle. The regular (smooth) surface pattern conveyors are prone to slippage and so the role of chevron belt is vital in the material handling industry. It provides a suitable solution to convey numerous materials between 18⁰ to 45⁰ inclinations.
Chevron cleated Conveyor Belt is widely used in Bulk Material Handling areas such as:
Gravels
Wood Chips
Pellets
Metal Scrap
As well as unit loads – bagged materials, sacks, crates, etc.

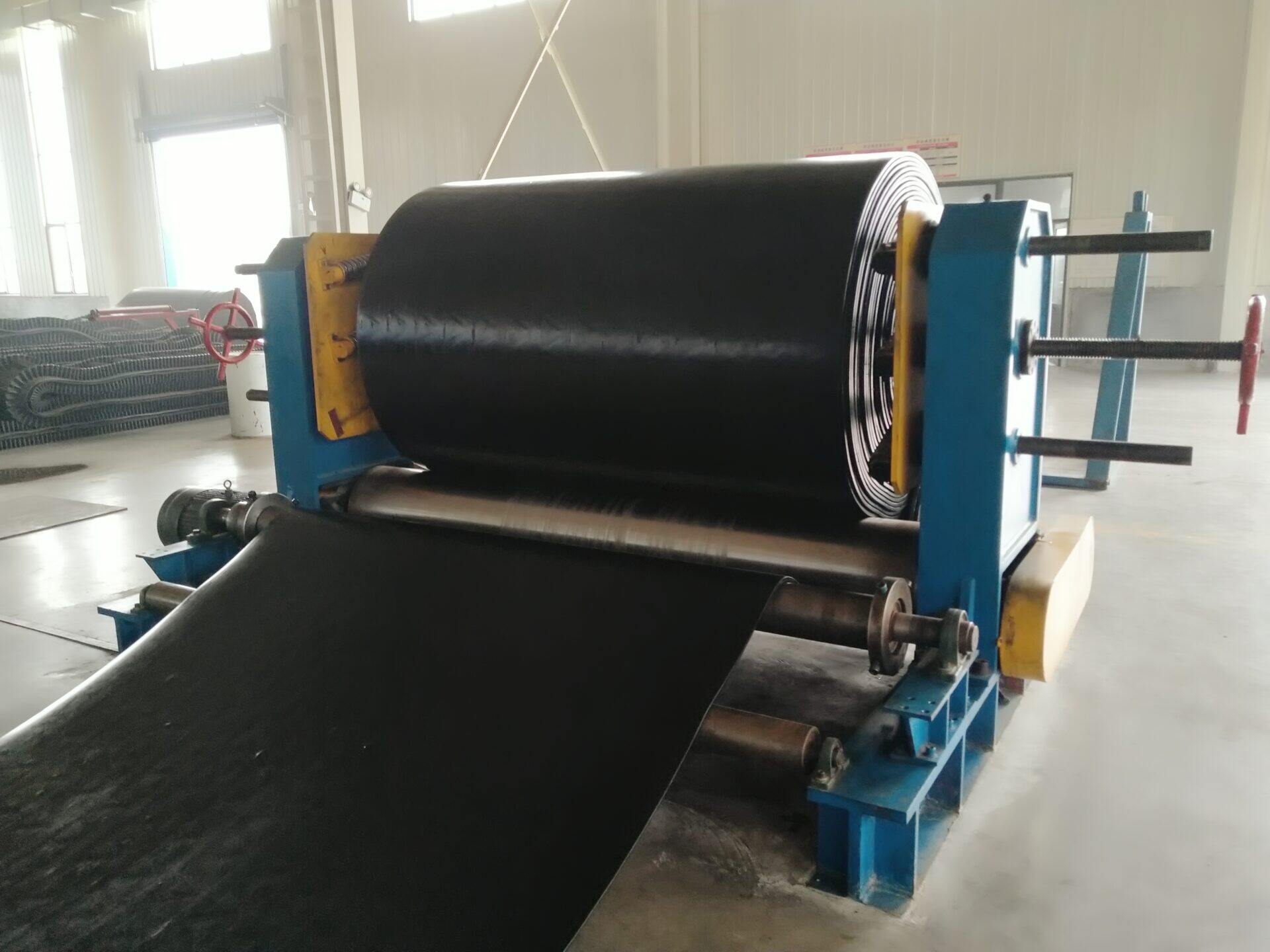

Chevron Cleated Rubber conveyor belt is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and good elasticity. Conveying small and not large massiveness materials, massiveness materials and biscuit materials. Applicable for conveying long and not very long distance materials, weight materials and materials that is very long and its sliding rate is very fast.
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
China GB/T7984 Standard
Germany DIN22102 Standard
US RMA Standard
UK EN ISO15236 Standard
Japan JISK6322 Standard
Australia AS1332 Standard
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength TD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
| A | 18 | 400 | 70 | 5 | 7 | |
| C | 20 | 400 | 150 | 5 | 7 | |
| M | 25 | 450 | 120 | 5 | 7 | |
| N | 17 | 400 | 150 | 5 | 7 | |
| carcass material | fabric type | single fabric thickness (mm/ply) |
single fabric strength (N/mm) |
Number of fabric piles | Cover rubber thickness (mm) |
belt width (mm) |
belt length (m) |
|
| upper | bottom | |||||||
| Cotton Canvas (CC) | CC-56 | 1.10 | 56 | 2-10 | 2.0-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Nylon (NN) | NN100 | 0.75 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| NN150 | 0.80 | 150 | ||||||
| NN200 | 0.90 | 200 | 500-2500 | |||||
| NN250 | 1.15 | 250 | ||||||
| NN300 | 1.25 | 300 | 2-6 | |||||
| NN400 | 1.45 | 800-2500 | ||||||
| NN500 | 1.55 | 500 | ||||||
| Polyester (EP) | EP100 | 0.80 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| EP125 | 0.85 | 120 | ||||||
| EP150 | 0.90 | 150 | ||||||
| EP200 | 1.05 | 200 | 500-2500 | |||||
| EP250 | 1.25 | 250 | ||||||
| EP300 | 1.35 | 300 | 2-6 | |||||
| EP350 | 1.50 | 350 | 600-2500 | |||||
| EP400 | 1.80 | 400 | ||||||
| EP500 | 2.00 | 500 | ||||||
| Item | between the fabric layers | between cover and belt carcass | |
| cover thickness 0.8-1.5mm | cover thickness>1.5mm | ||
| average value of all samples,N/mm≥ | 4.5 | 3.2 | 3.5 |
| lowest peak value of all samples,N/mm≥ | 3.9 | 2.4 | 2.9 |
| Remark:highest peak value of all samples shall not exceed 20N/mm | |||
