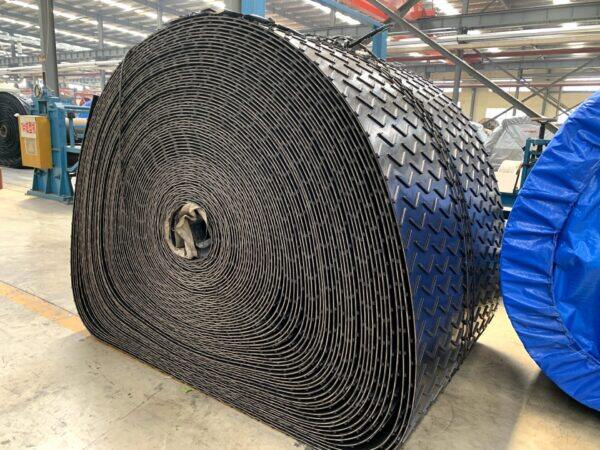

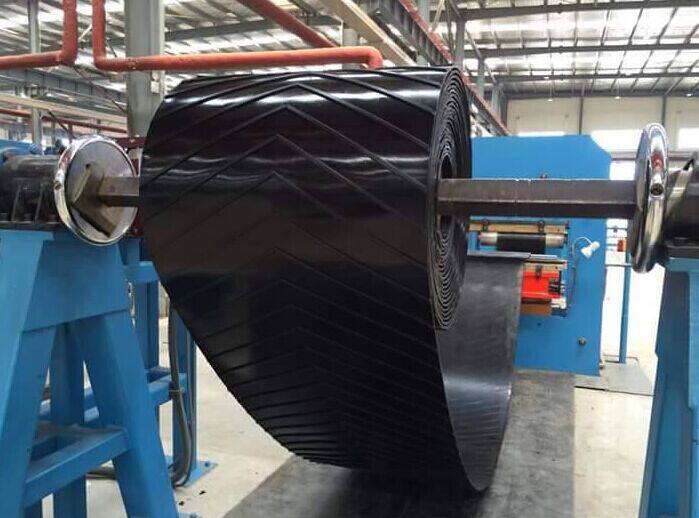

Chevron belting is composed of the belt carcass and pattern, since the material to be conveyed and the angle of inclination of the conveyor is different, the shape and height (depth) of the pattern is different. The angle includes a 0~45° inclination angle. And the pattern type includes V type, Cylinder type, U type, etc.

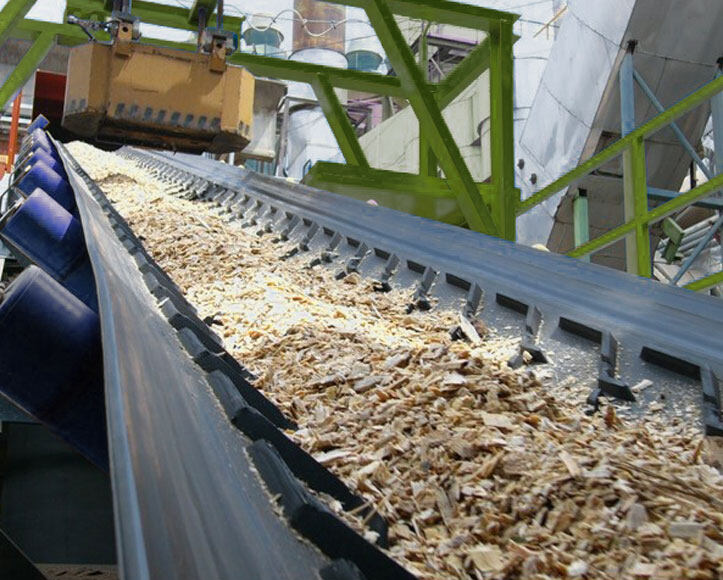

Chevron belting is commonly used in the transportation of bulk materials in industries such as mining, quarrying, construction, and agriculture. The unique design provides excellent grip and prevents materials from slipping or sliding during transportation.
Chevron Belting is made up of several layers of materials, including a carcass made of synthetic fabric or steel cords embedded in rubber, a top cover made of high-quality rubber with a chevron pattern, and a bottom cover made of rubber that protects the carcass from damage.
Chevron belting is manufactured in accordance with various industry standards such as ISO 14890, DIN 22102, AS 1332, and BS 490.
| Technical Parameter | Description |
| Belt width | 400mm – 3200mm |
| Chevron height | 5mm – 32mm |
| Chevron spacing | 125mm – 1500mm |
| Belt thickness | 4mm – 30mm |
| Top cover thickness | 2mm – 10mm |
| Bottom cover thickness | 1.5mm – 10mm |
| Ply | 2 – 10 |
| Tensile strength | 250N/mm – 3500N/mm |
| Temperature range | -25°C to +200°C |
| Filler material | Cotton or EP Fabric or others |
| Elongation at break | 10% – 25% |
