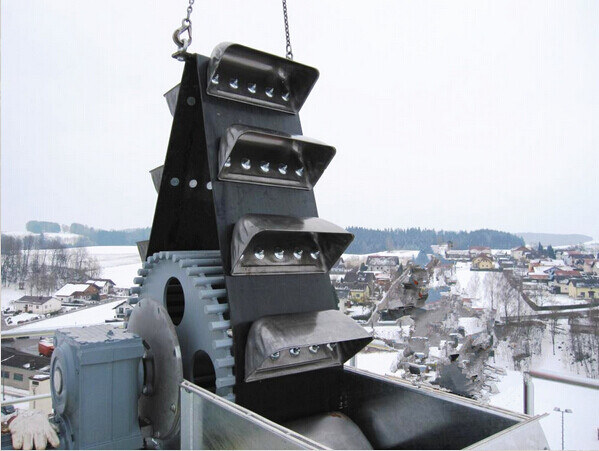

Suitable for conveying material vertically, widely used in building, cement, mining, chemical, light industry, power station and grain etc.

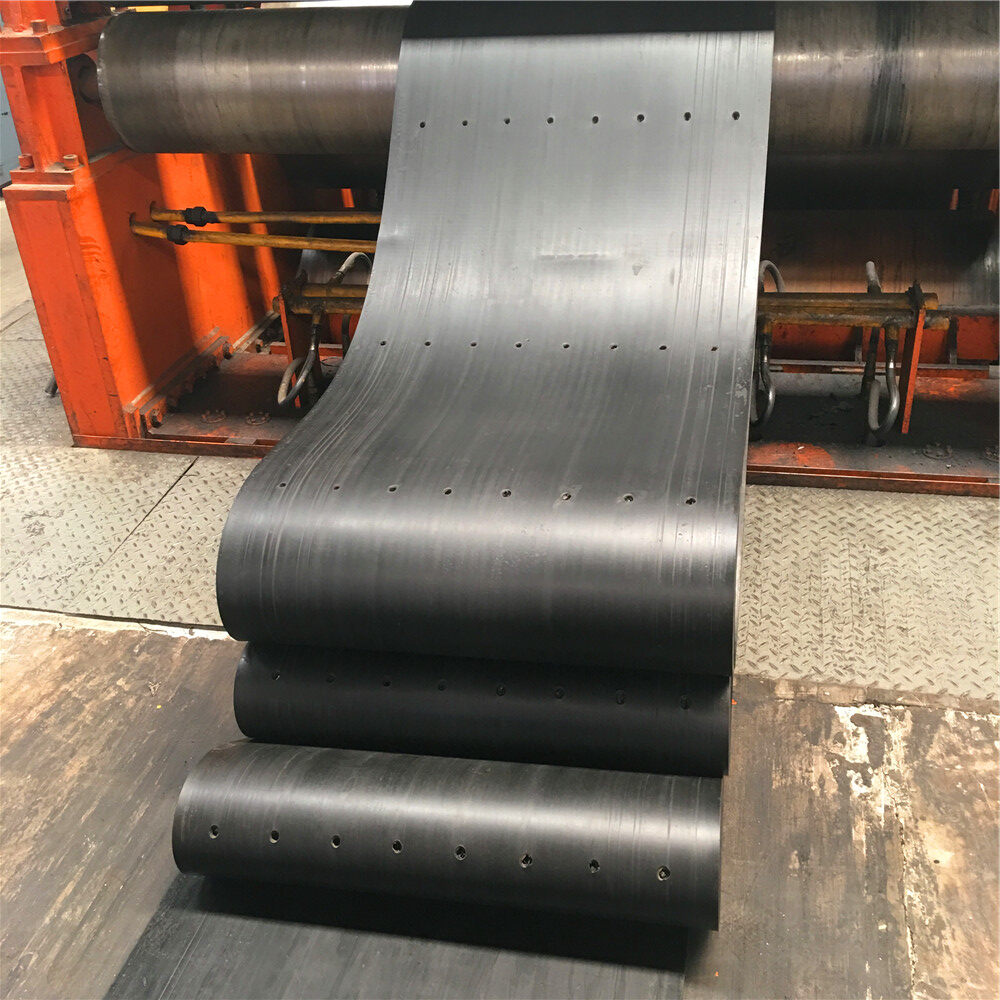

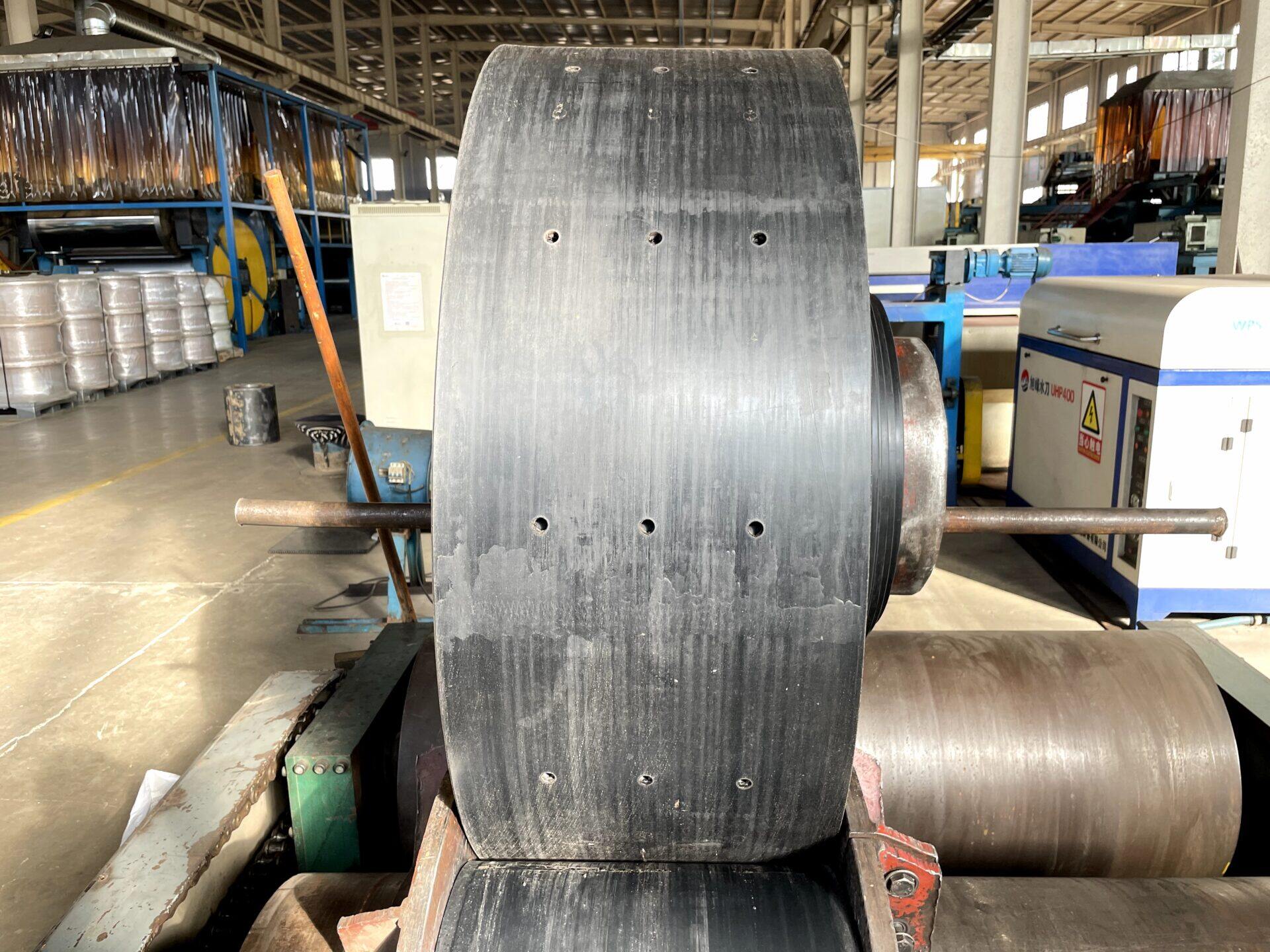

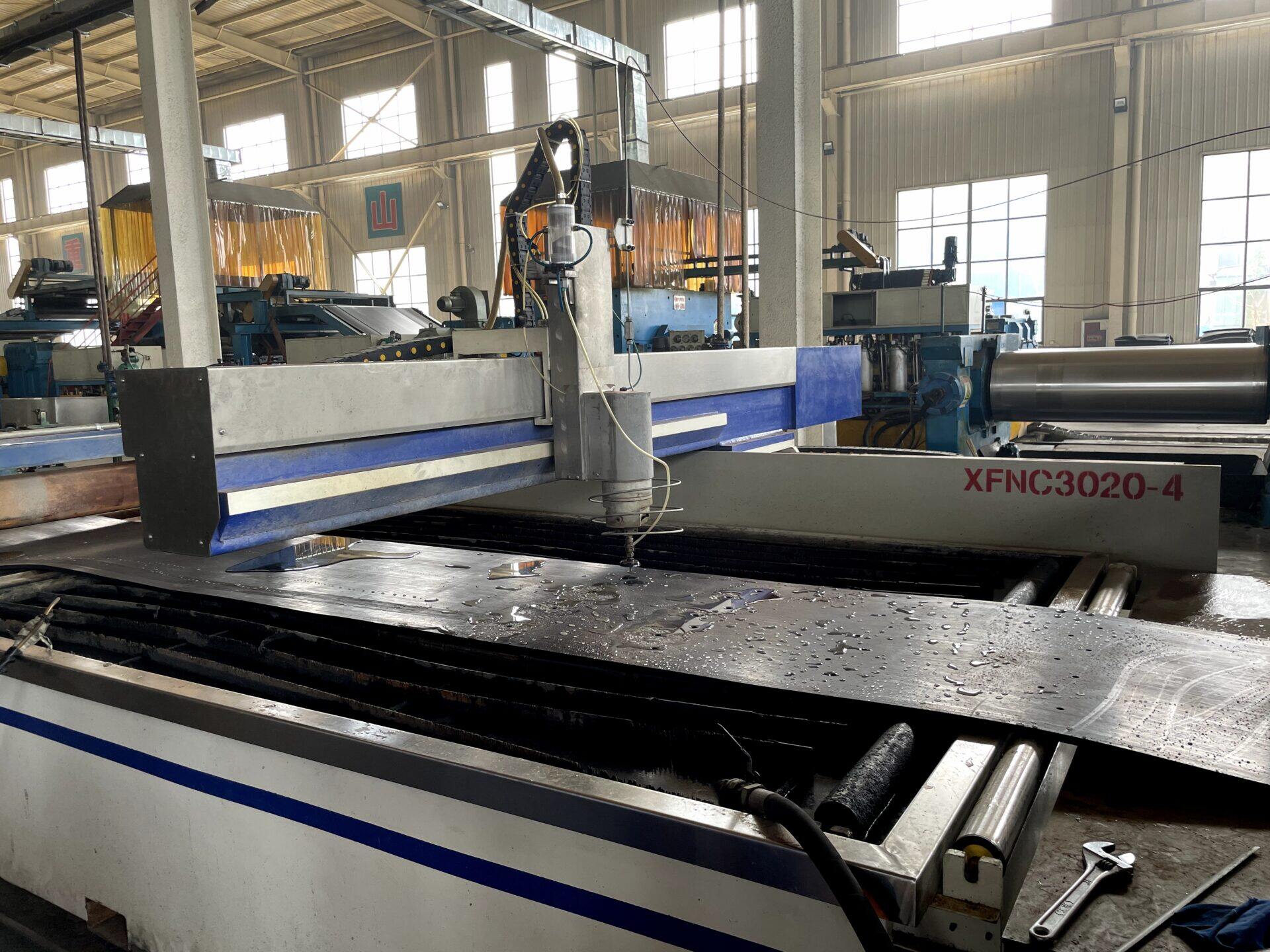

Small elongation, large conveying capacity, stable operation, convenient maintenance, and good adaptability to bulk materials. This special belt is completely different from the traditional steel cord belt in terms of thickness, steel wire density, warp and weft arrangement, steel wire thickness, etc. This belt forms a steel skeleton in the vertical and horizontal directions, so it can ensure the safe connection of the hopper and the balanced load distribution. The belt is punched by machinery or rhinestones, and the holes have been drilled before leaving the factory. The use effect shows that this special steel wire tape can meet the large conveying volume, ultra-high usage requirements.
| Bucket width (mm) | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | |
| Bucket volume(L) | 5 | 6.5 | 14.6 | 18 | 29 | 37 | 58 | 73 | 99 | 114 | |
|
Conveying Capacity m3/H |
Φ100% | 85 | 117 | 225 | 280 | 450 | 570 | 950 | 1255 | 1547 | 1780 |
| Φ75% | 63 | 88 | 168 | 210 | 338 | 428 | 712 | 941 | 1160 | 1335 | |
| Lifting height(m) | ＞100 | ＞100 | ＞100 | ＞120 | ＞120 | ＞120 | ＞130 | ＞130 | ＞130 | ＞130 | |
Notes:
1.1The bucket volume is the volume when taking water, Φ is the material filling ratio.
2.The maximum lifting height is the center distance C between the head shaft and the tail shaft.
