Anti Tear Steel Cord Conveyor Belt

Product Classification

Strength: According to customer demand, maximum 7500N/mm

Width (mm): 800mm-2400mm, such as 800mm, 900mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm,2000mm, 2200mm, 2400mm
Thickness: such as 3+1.5mm, 3+2mm, 4+2mm, 5+3mm, 6+2mm, 8+2mm etc.

Require Now

Product Use

The conveyor belt is suitable for the fields of mine, coal, port, metallurgy, electric power, chemical industry, etc. it is suitable for places with high strength, long distances, and large volumes to transport sharp hard objects and high blanking height.

Product Structure

Anti tear steel cord conveyor belt is used new-structure steel cord as the tension element. We lay steel cord, cord thread, fiber rope, and fabric as the reinforcement which is placed vertically to longitudinal steel cord on one/two sides.

Product Features

Anti tear steel cord conveyor belt has the characteristics of high tensile strength, good elasticity, impact resistance, small use elongation, high wear resistance, good adhesion between rubber and steel wire rope, even tension of steel wire rope, good slotting performance, etc.

Executive Standard

US RMA Standard

Germany DIN22102 Standard

Japan JISK6322 Standard

Australia AS1332 Standard

UK EN ISO15236 Standard

China GB/T7984 Standard

Main Technical Parameters

Strength Level

Tensile Strength

（N/mm）





Wire Rope
Spacing

（mm）



A wire Rope
Diameter

（mm）



A Wire Rope
Minimum Breaking Force

（kN）

 ≥Adhesion Strength Of Steel Wire Rope
Before    Aging After

Aging
ST-500 500 14 3.0 7.6 60 50
ST-630 630 10 3.0 7.0 60 50
ST-800 800 10 3.5 8.9 67.5 57.5
ST-1000 1000 12 4.0 12.9 75 65
ST-1250 1250 12 4.5 16.1 82.5 72.5
ST-1400 1400 14 5.0 20.6 90 80
ST-1600 1600 12 5.0 20.6 90 80
ST-1800 1800 13.5 5.6 25.5 99 89
ST-2000 2000 12 6.0 25.6 105 95
ST-2250 2250 11 5.6 26.2 99 89
ST-2500 2500 15 7.2 40.0 123 113
ST-2800 2800 13.5 7.2 39.6 123 113
ST-3150 3150 15 8.1 50.5 136.5 126.5
ST-3500 3500 15 8.6 56.0 144 134
ST-4000 4000 15 8.9 63.5 148.5 138.5
ST-4500 4500 16 9.7 76.3 160.5 150.5
ST-5000 5000 17 10.9 91.0 178.5 168.5
ST-5400 5400 17 11.3 98.2 184.5 174.5



Video

Company Introduction

FAQ

Q1. How about your experience?

We have mainly produced rubber conveyor belts for over 20 years.

Q2. What are your main products?

Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.

Q3. What about the lead time?

1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.

Q4. Can you send free samples?

Yes, we provide samples for free after inquiry.

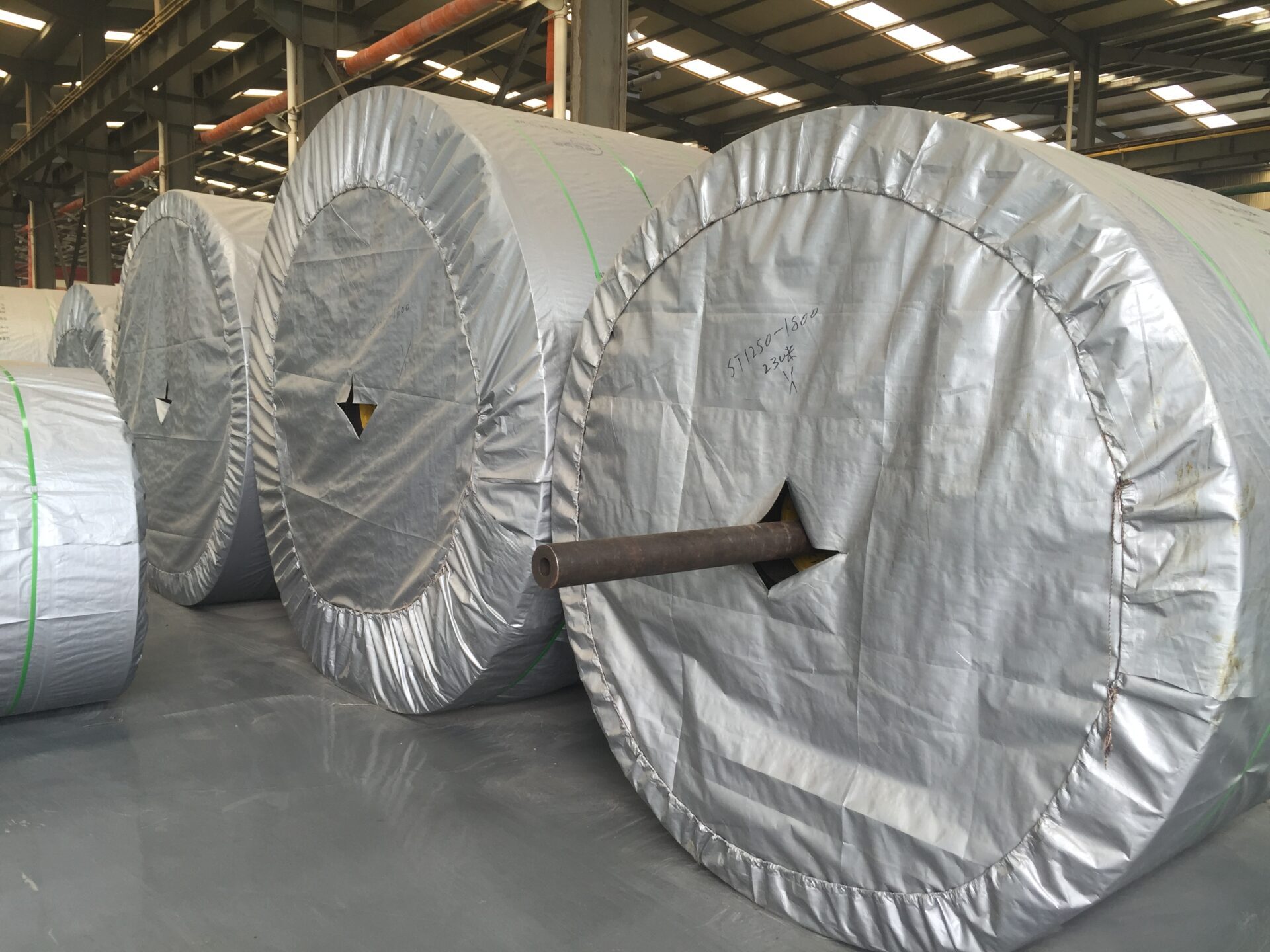

Q5. How about the package?

Standard export packing method, your special requirement will be respected.

Q6. What are your Payment terms?

T/T or L/C.

Q7. Can you do door-to-door?

No problem.

Q8. How do you ensure your product quality?

Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.

Q9. What is your major market?

Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.

Q10. What you can do to support me better?

We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
